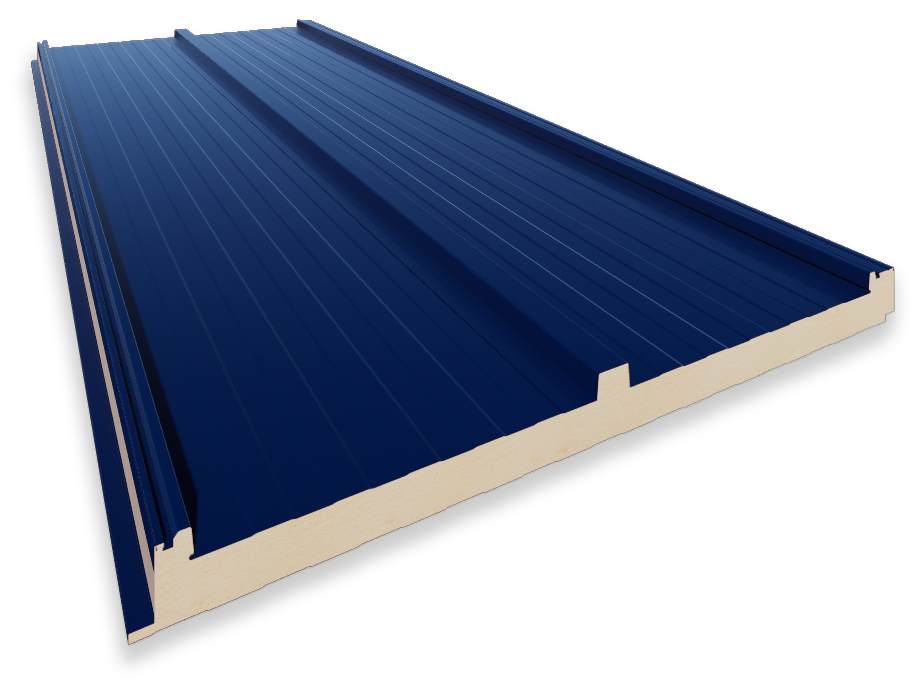

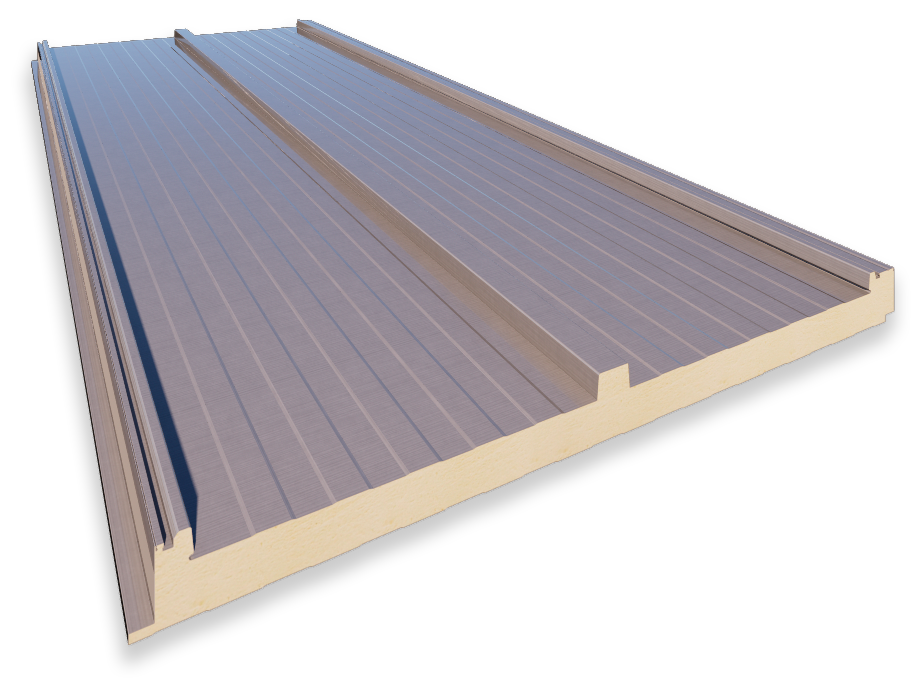

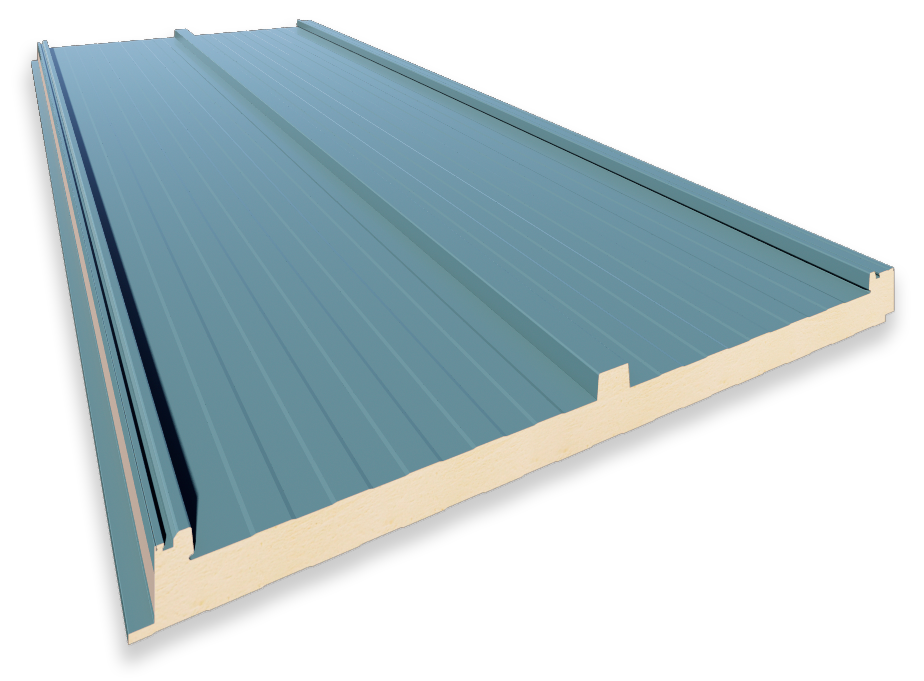

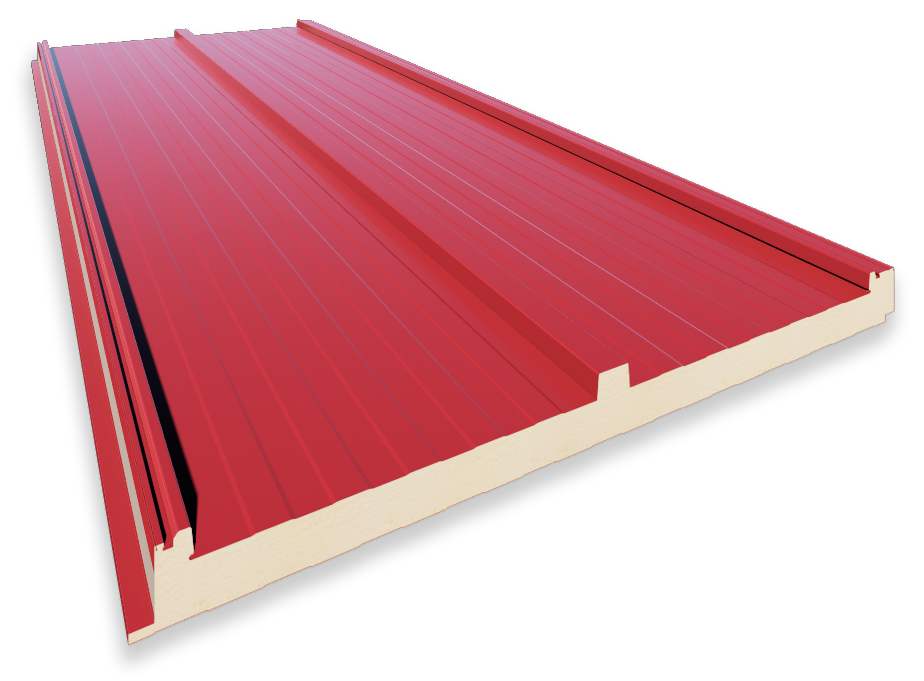

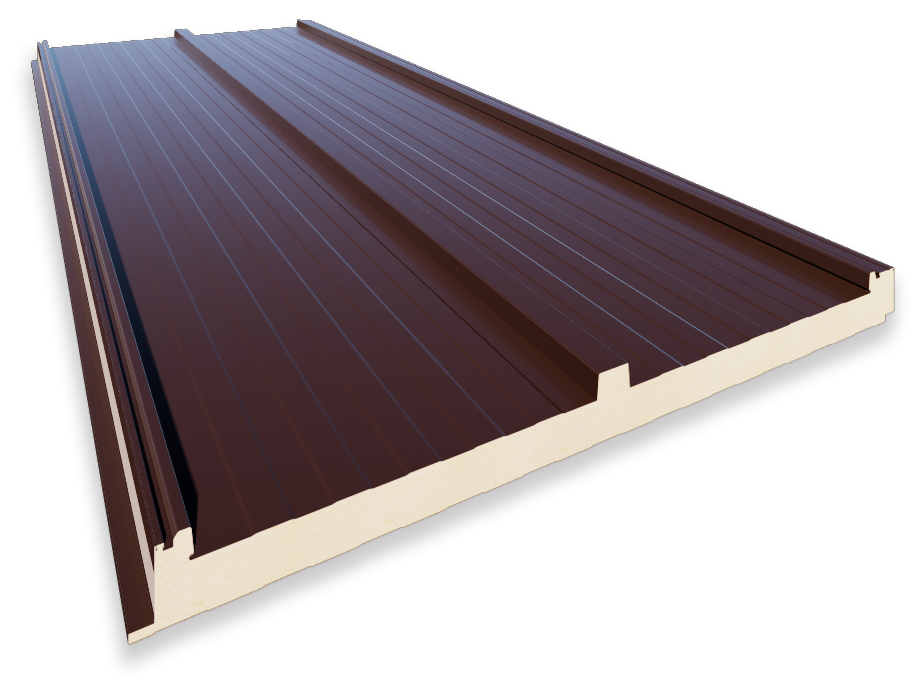

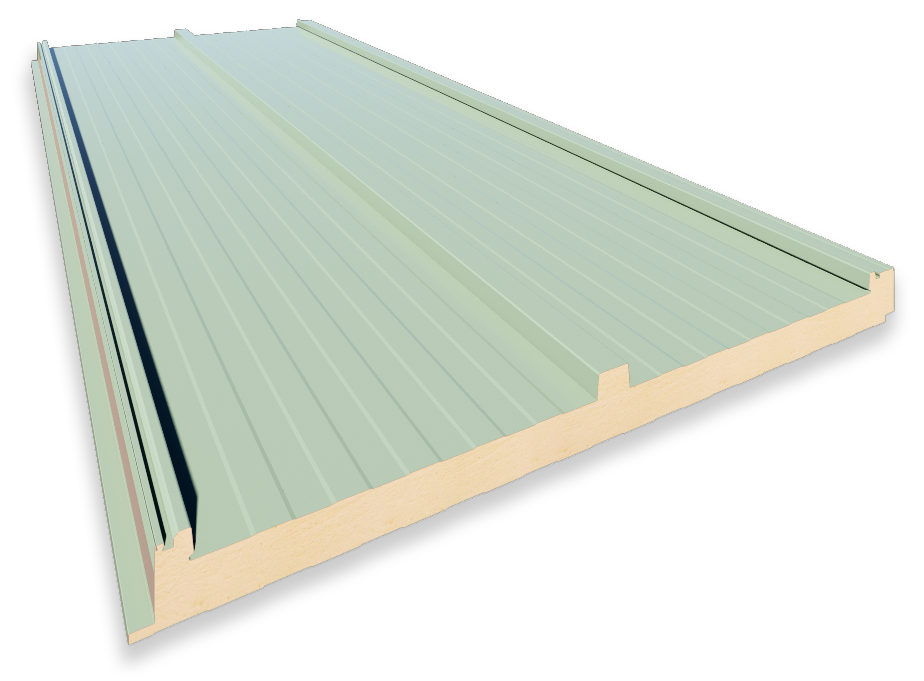

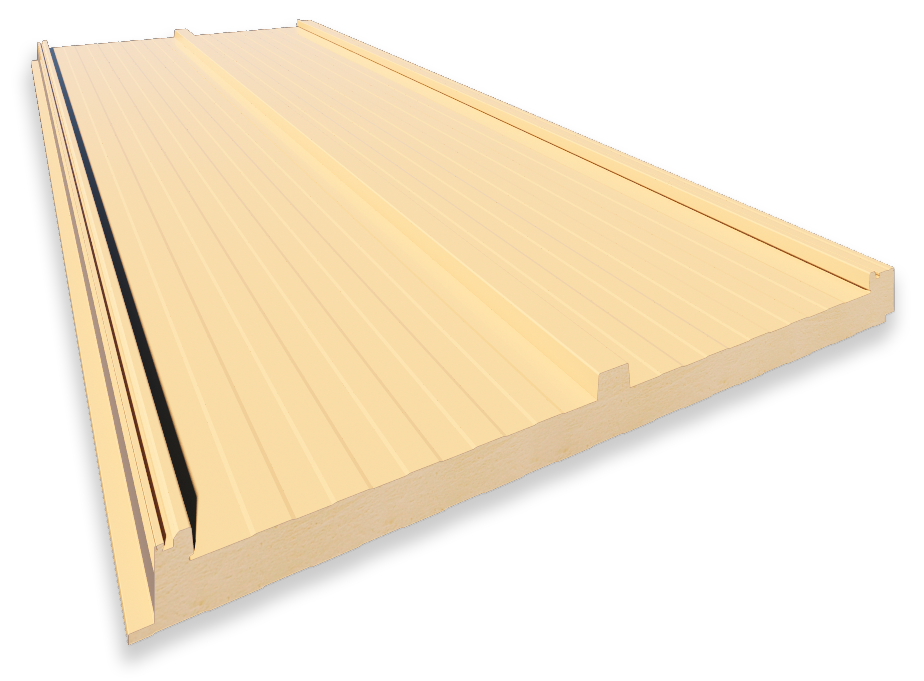

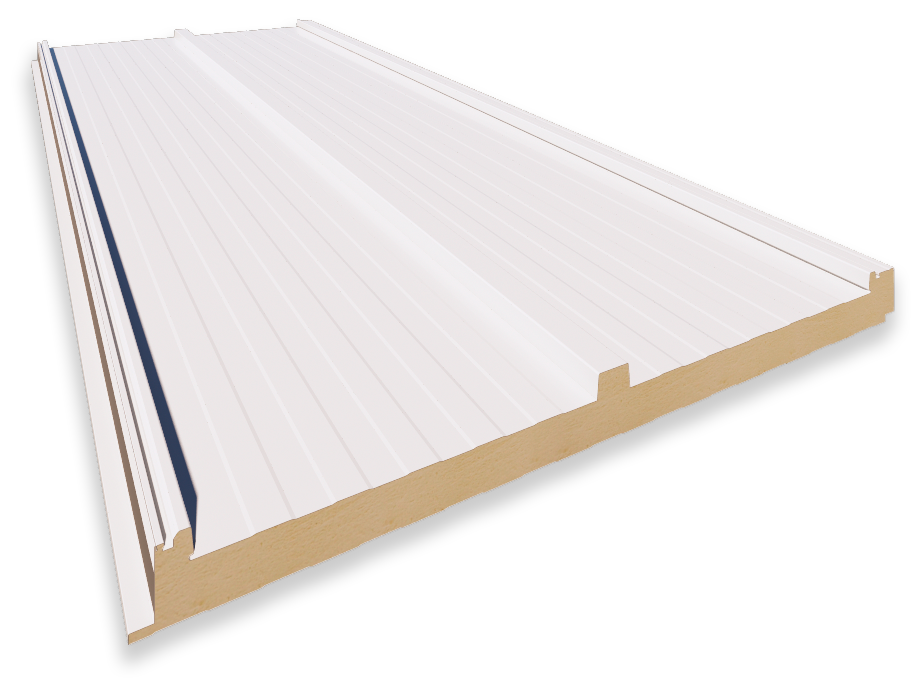

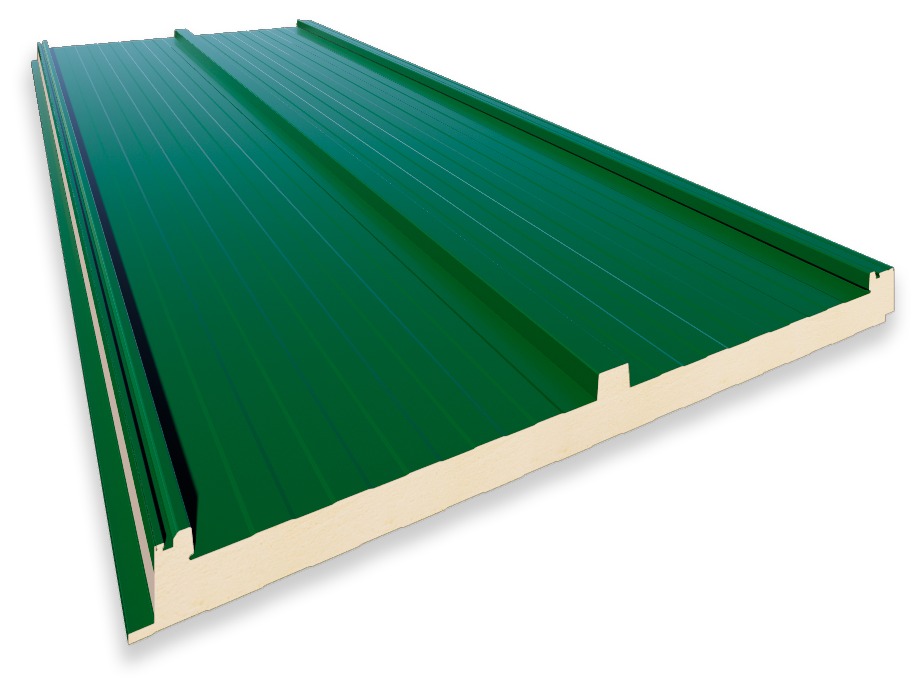

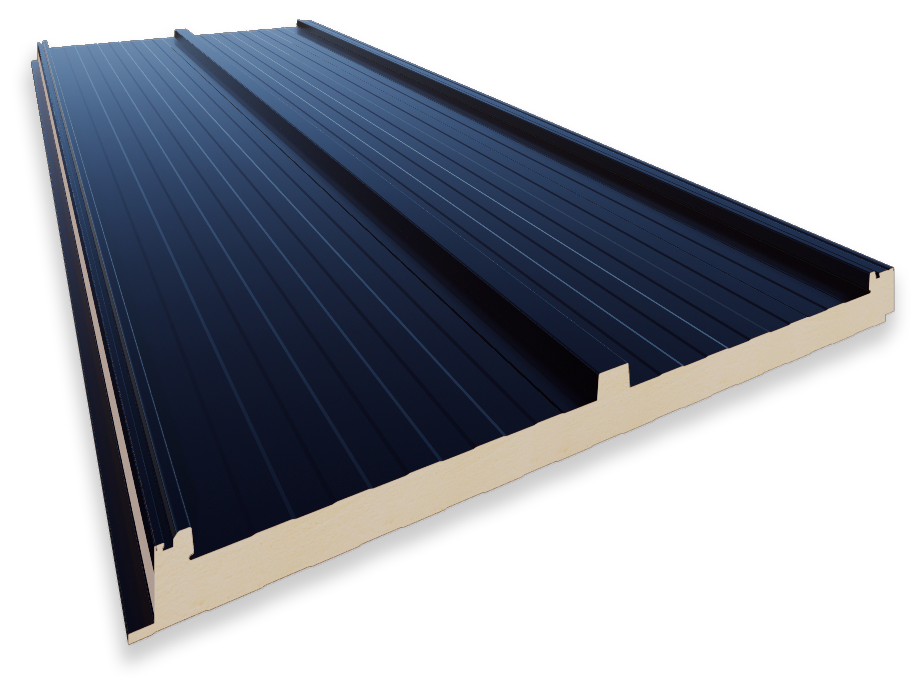

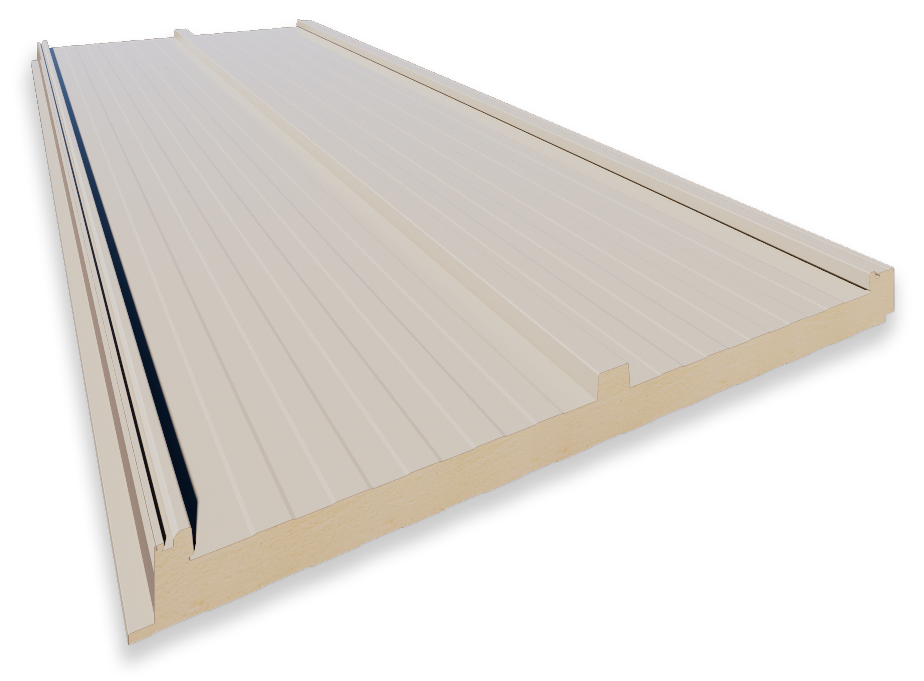

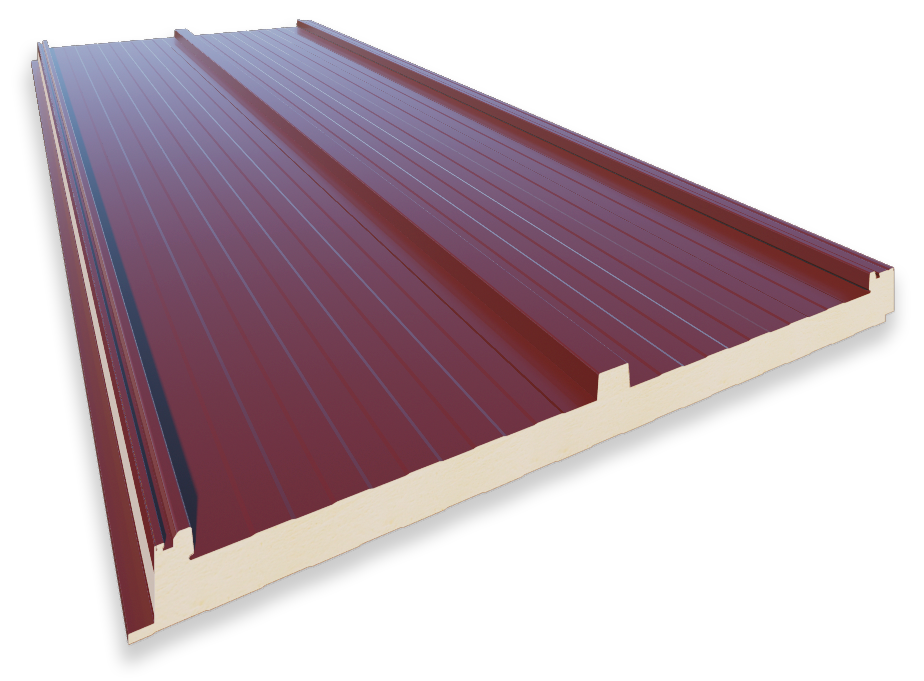

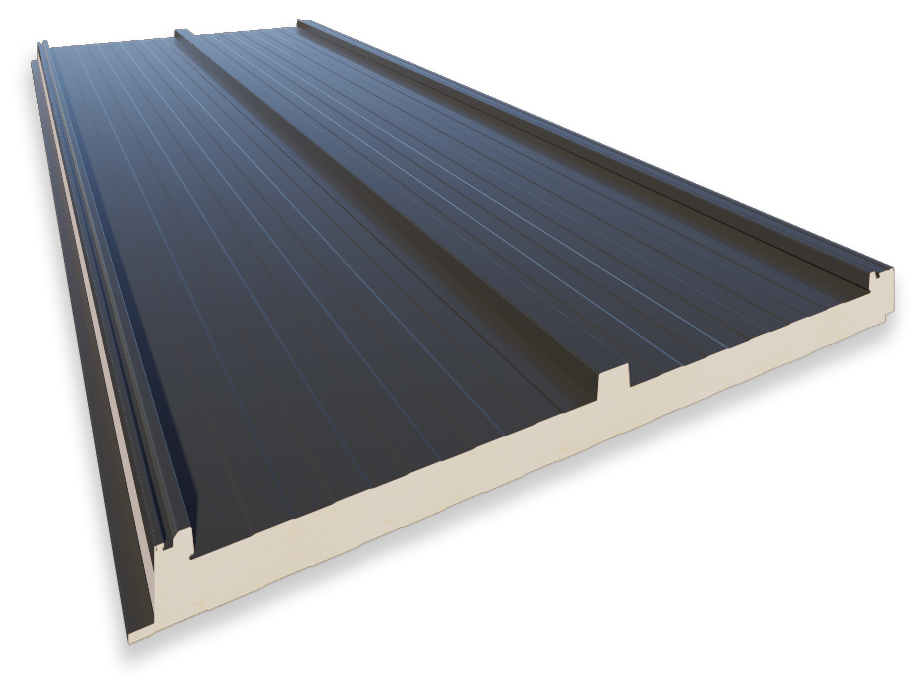

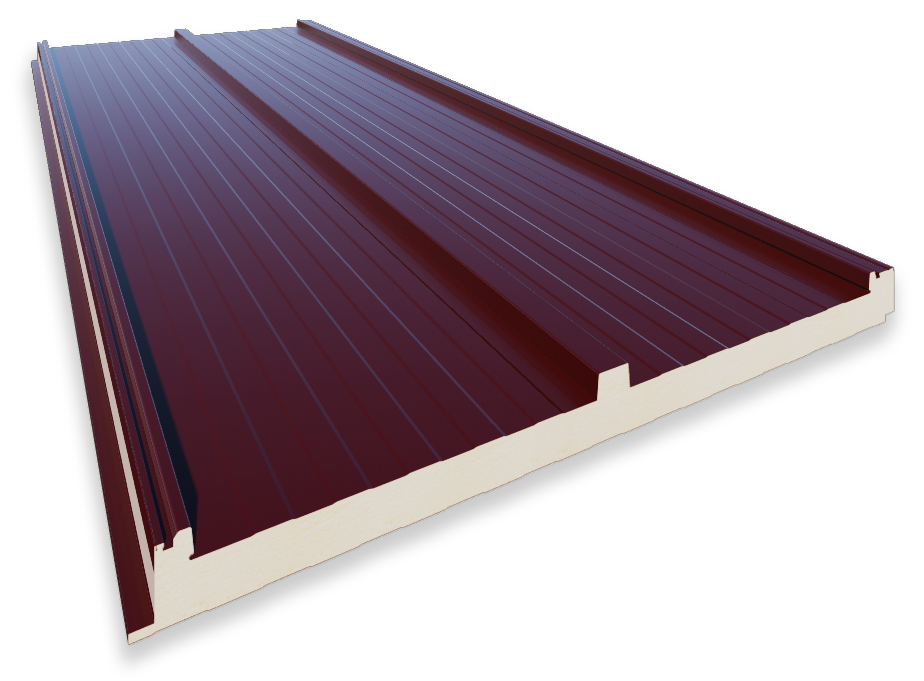

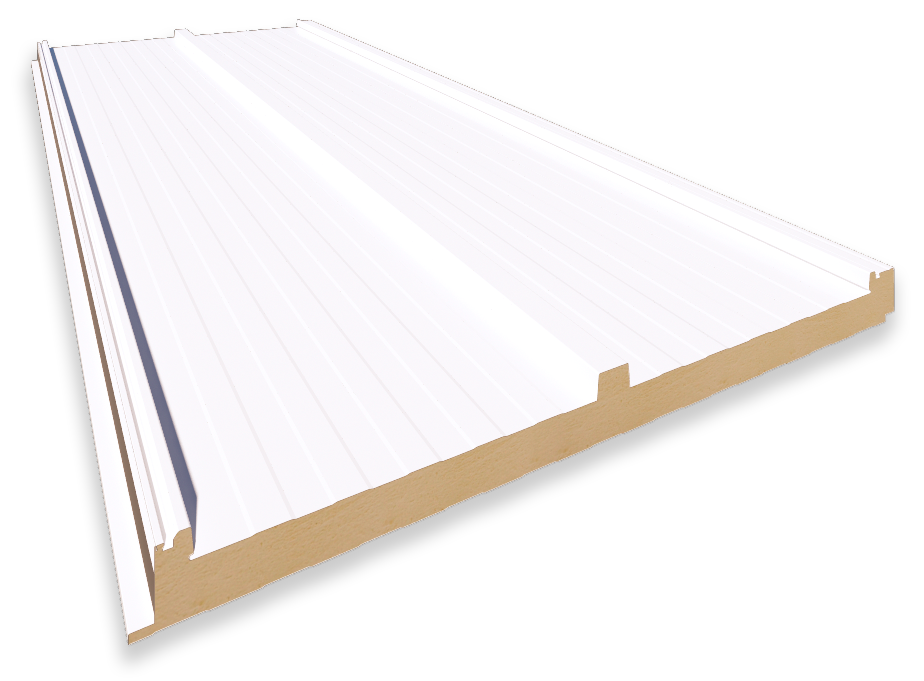

Roof Panel CUB 3GR

Roof Panel with Flashing

Panel designed for sloping roofs with a minimum incline of 7%. Its hidden bolt-on system (flashing) guarantees water tightness, while providing the system with a modern, functional appearance. Its profile combines perfectly with excellent mechanical properties with a minimum-ribbed finish.

Technical specifications

Exterior face

Pre-painted steel

Interior face

Pre-painted steel, centesimal aluminum, bituminous cardboard

Insulation

Polyurethane (PUR)
Polyisocyanurate (PIR)

Thicknesses (mm)

30/40/50/60/80/100/120 (1.18/1.57/1.97/2.36/3.15/3.94/4.72 in.)

Use

Sloping roof surfaces

Useful width

1,000 mm (39.37 in.)

Technical documentation

Data sheet

Download

Panel Operations Guide

PANEL OPERATIONS GUIDE

Color Chart

COLOR CHART

BIM Objects

BIM Models

Assembly Guide for Roof Panel 3GR
