EASY CUB 5GR Roof Panel

Roof Panel without Flashing

A double corrugated sheet panel with 5 ribs, to increase mechanical resistance, with a foam-insulating core, and a visible bolt-on securing system. Attachment uses the overlapping rib on two adjoining panels, which together with a steel piece with EDPM, ensures the water tightness of the assembly with the use of self-drilling screws.

Technical specifications

Exterior face

Pre-painted steel

Interior face

Pre-painted steel

Insulation

Polyurethane (PUR)
Polyisocyanurate (PIR)

Thicknesses (mm)

30/40/50/60 (1.18/1.57/1.97/2.36 in.)

Use

Sloping roof surfaces

Useful width

1,000 mm (39.37 in.)

Colors

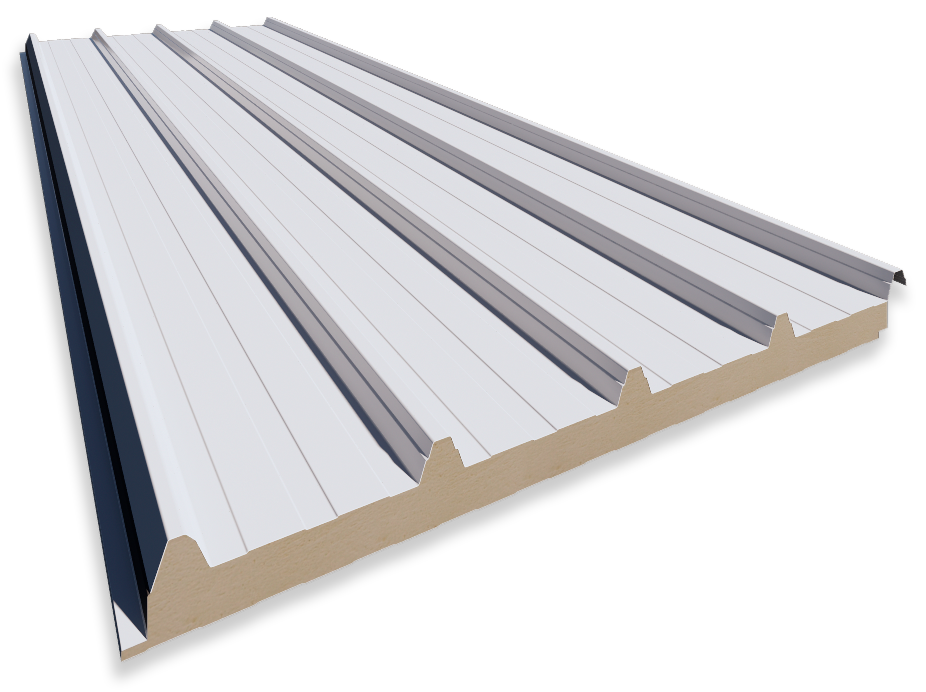

1000 Blanco Ostra*

Panel-1000

2000 Arena

Panel-2000

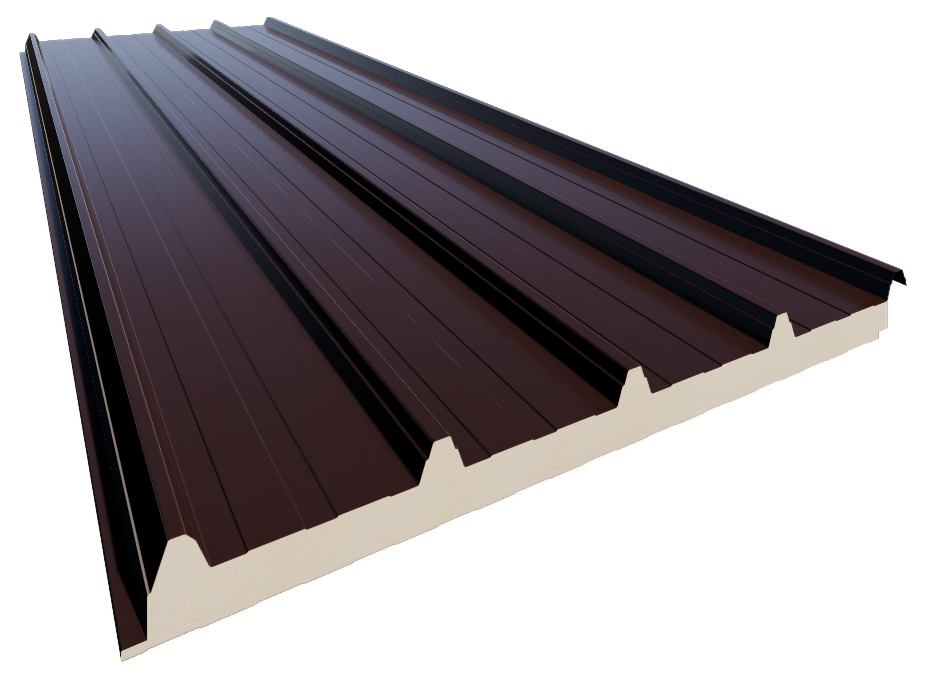

2005 Tabaco*

Panel-2005

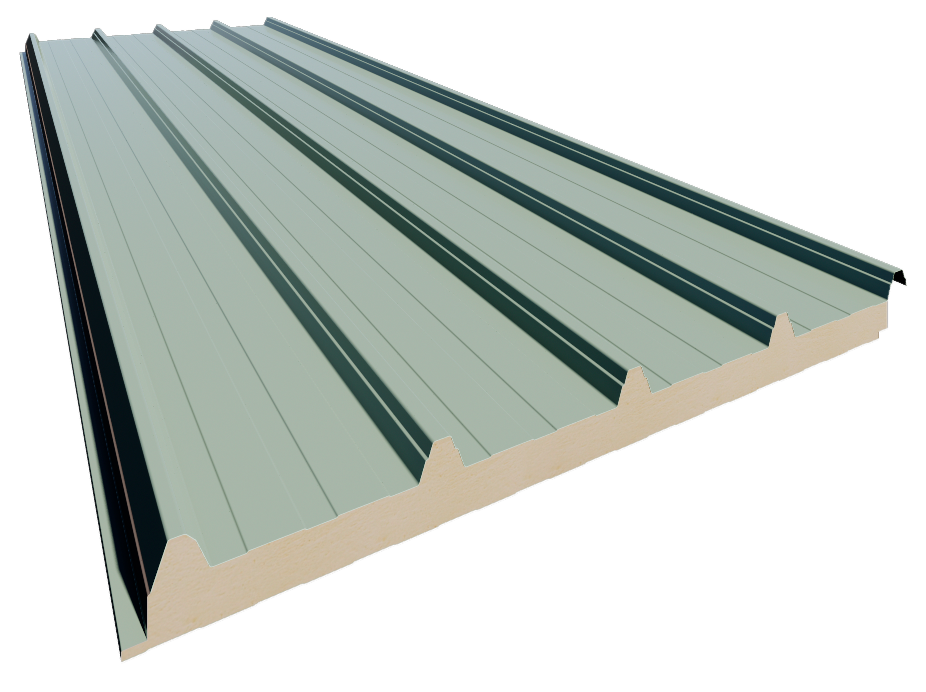

3001 Verde Claro*

Panel-3001

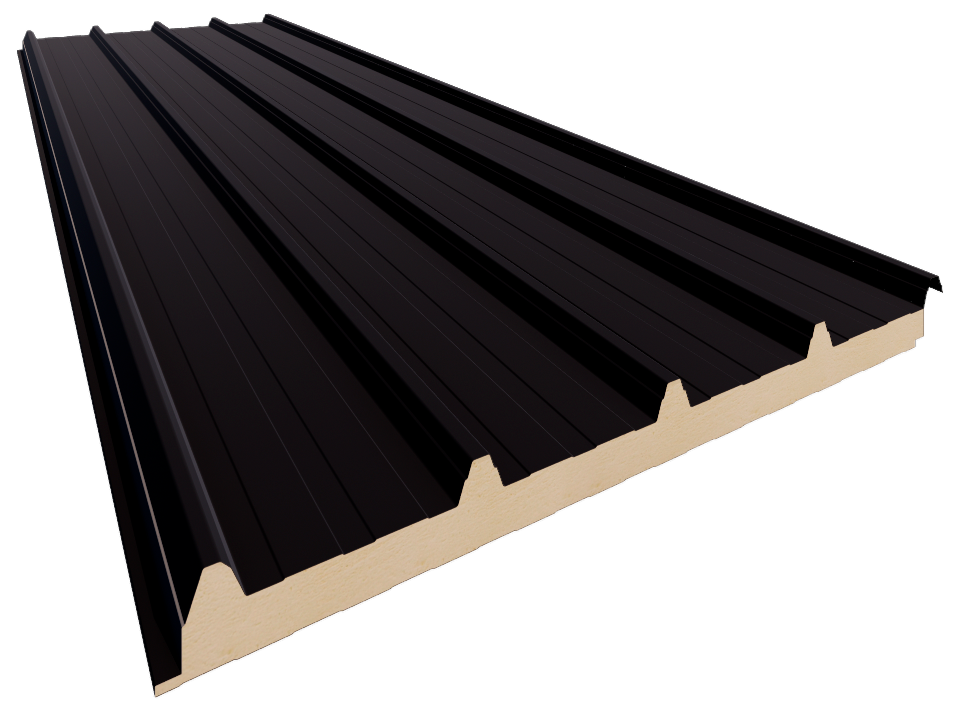

9005 Negro Intenso

Panel-0000

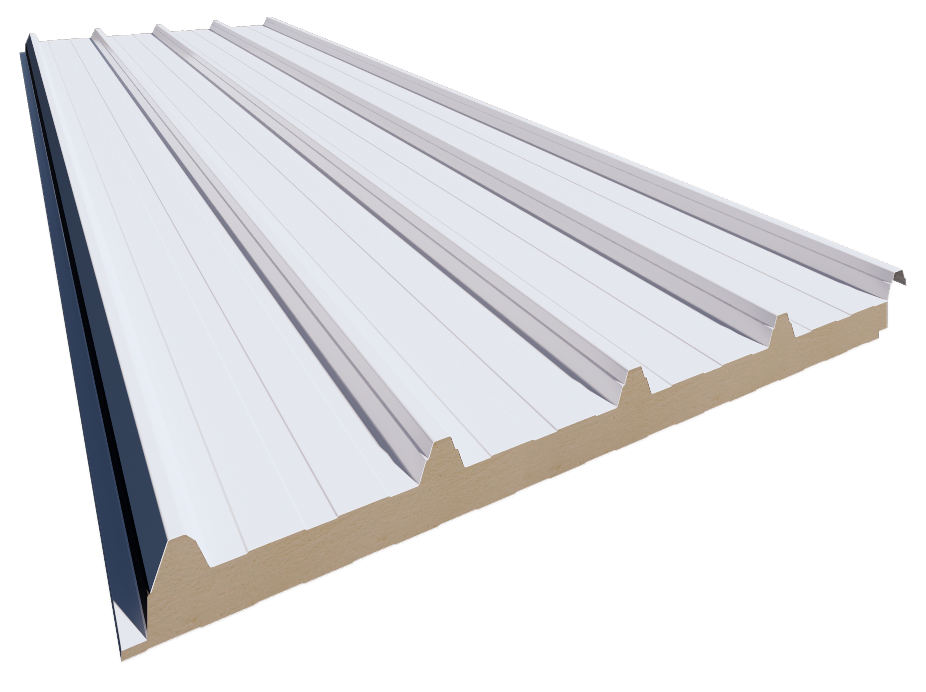

1006 Blanco Pirineo

Panel-1006

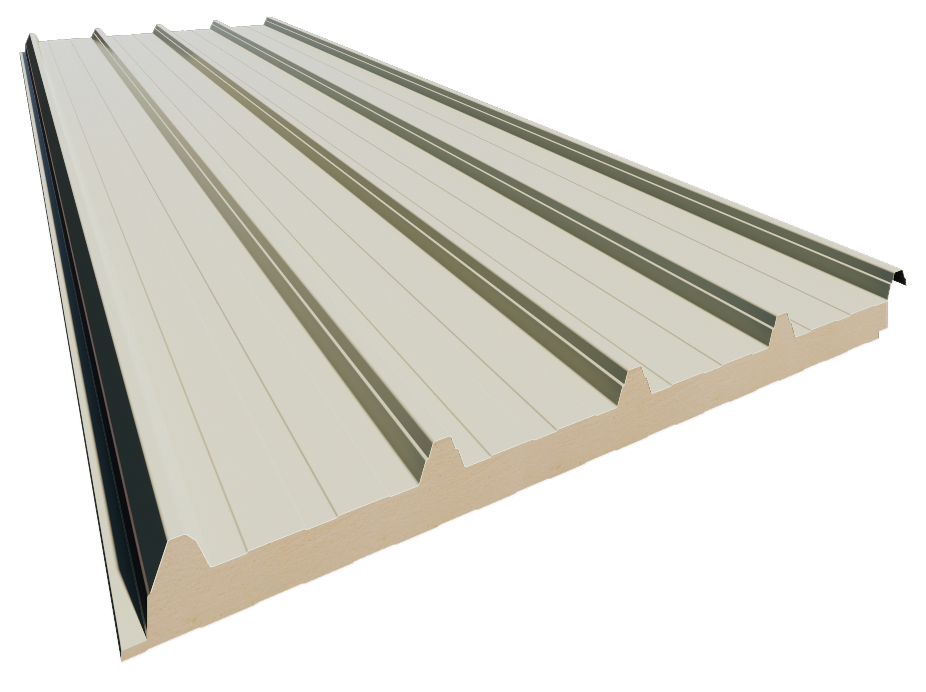

2002 Crema Bidasoa

Panel-2002

3000 Verde Navarro

Panel-3000

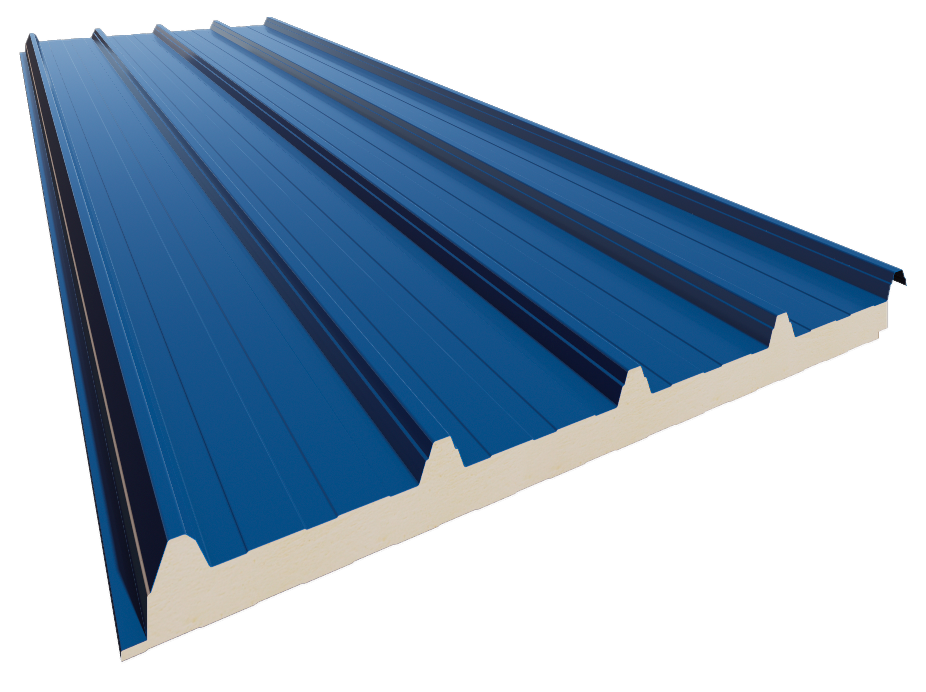

4000 Azul Lago

Panel-4000

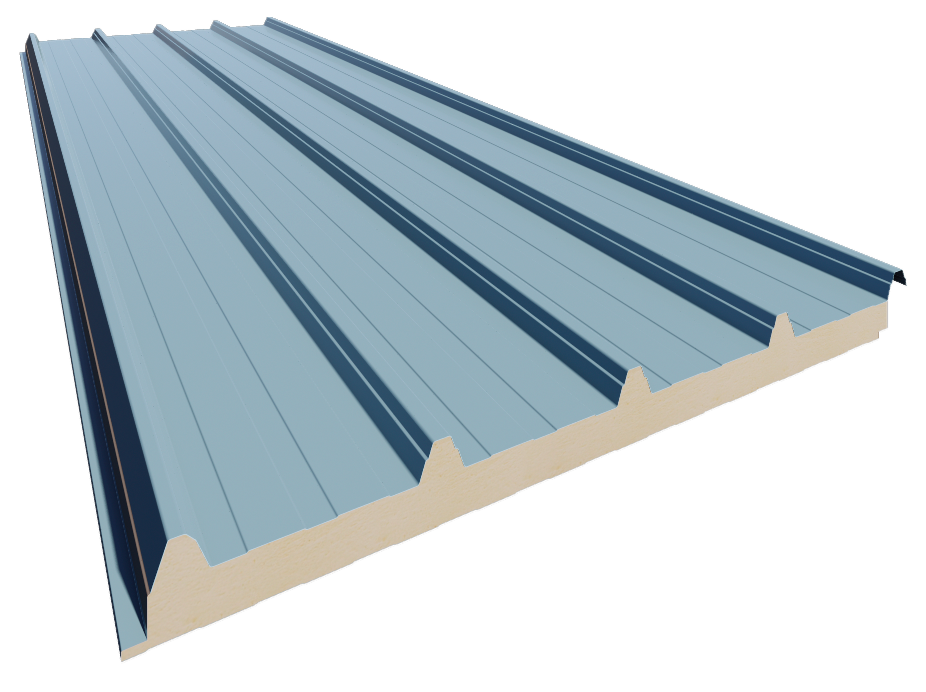

4001 Azul Cielo*

Panel-4001

7022 Gris Pizarra

Panel-4009

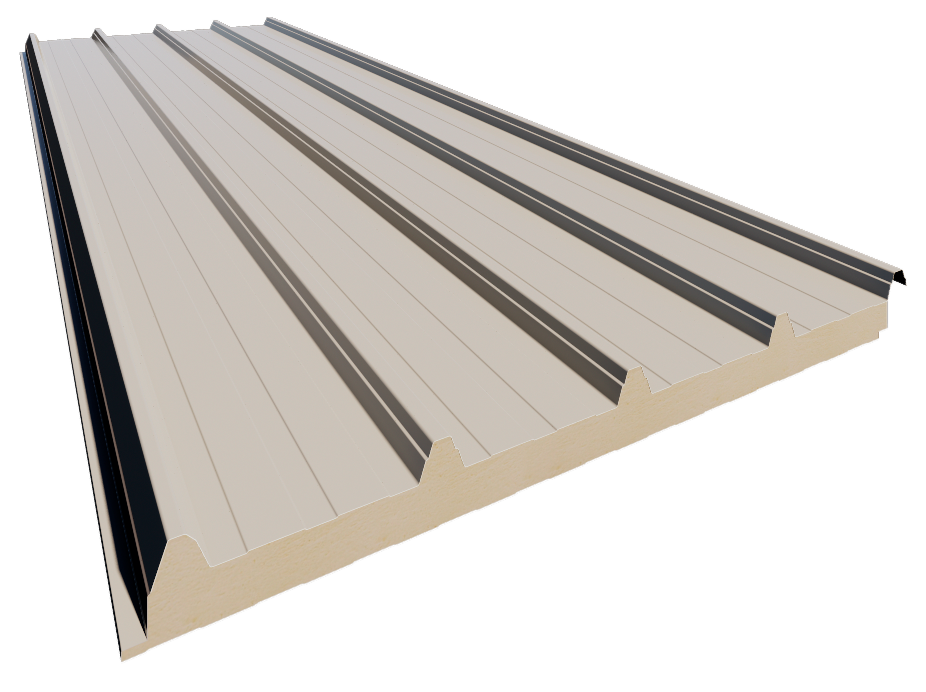

5001 Gris Perla

Panel-5001

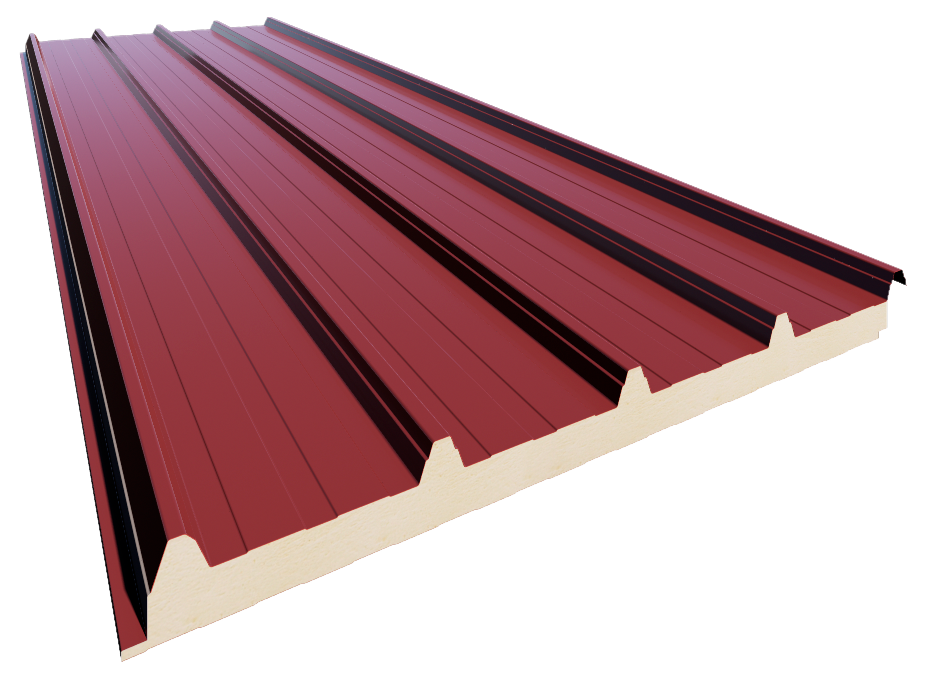

7001 Rojo teja

Panel-7001

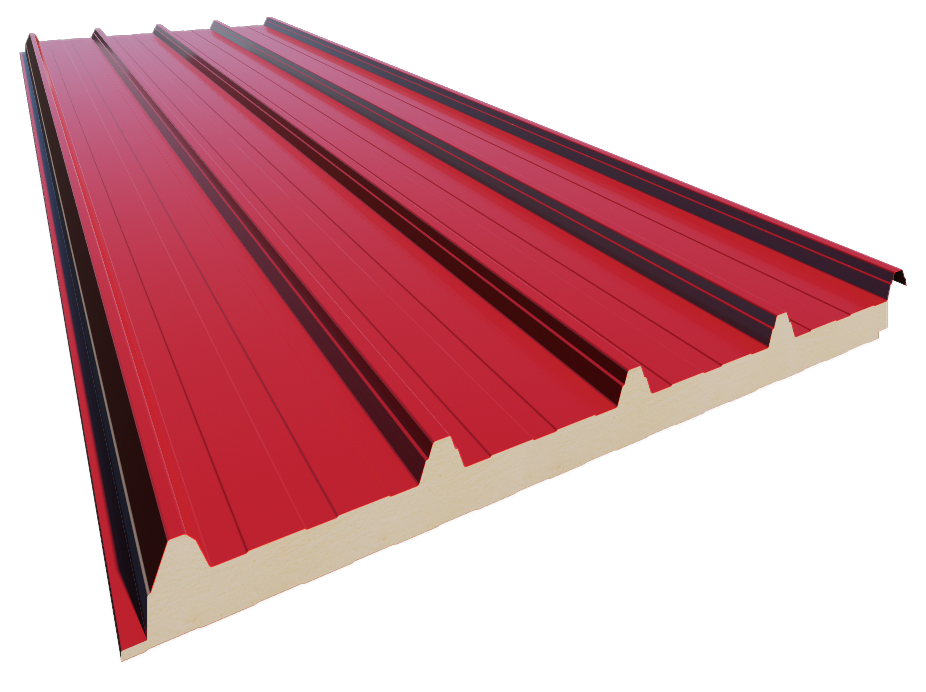

7004 Rojo Coral*

Panel-7004

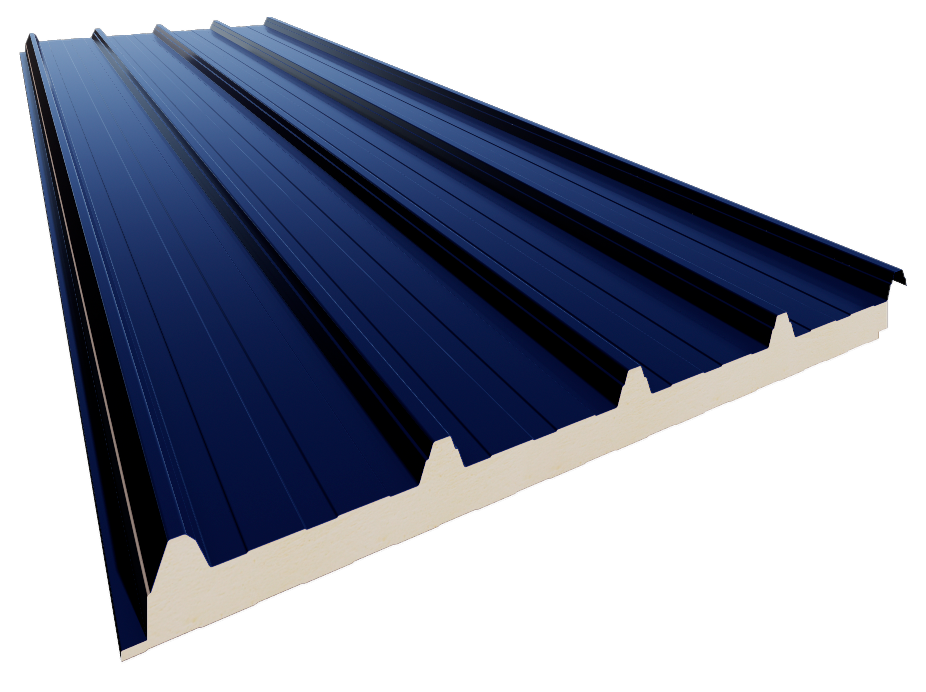

4002 Azul Marino*

Panel-4002

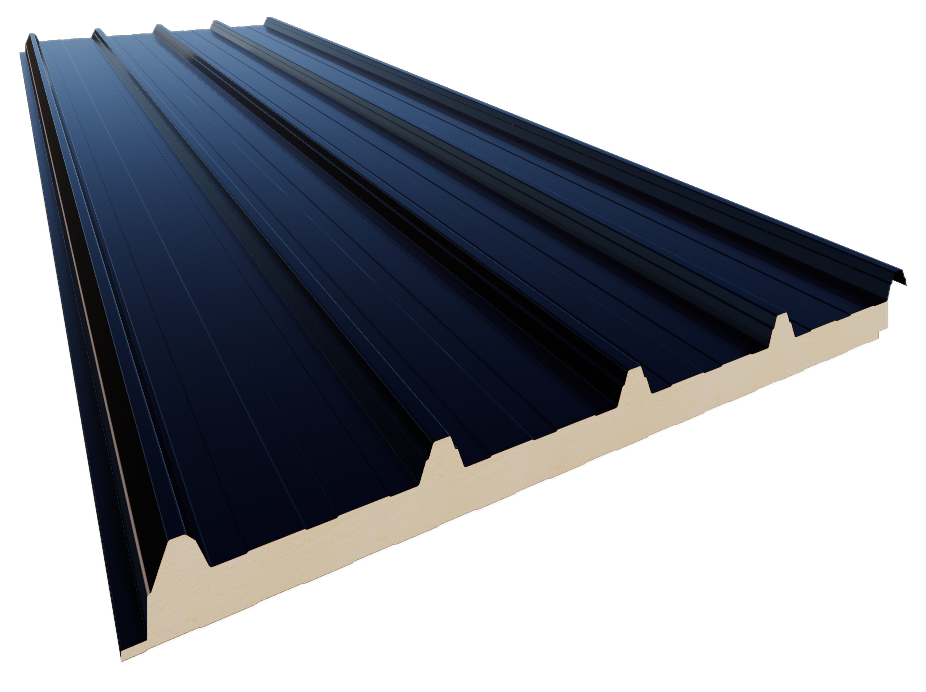

5008 Azul Ardoise*

Panel-5008

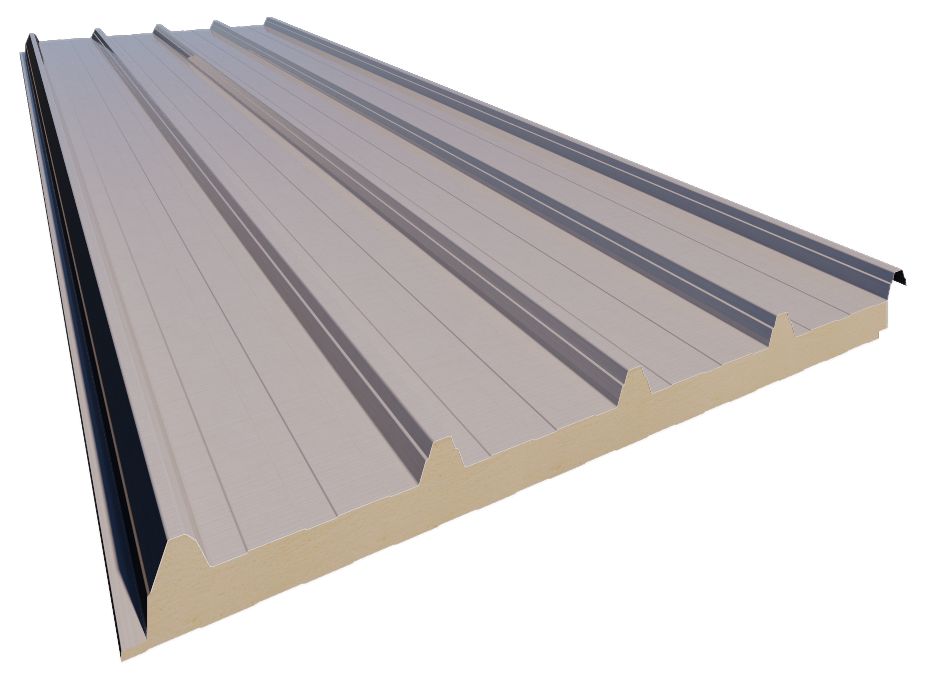

9006 Silver Metallic

Panel-9006

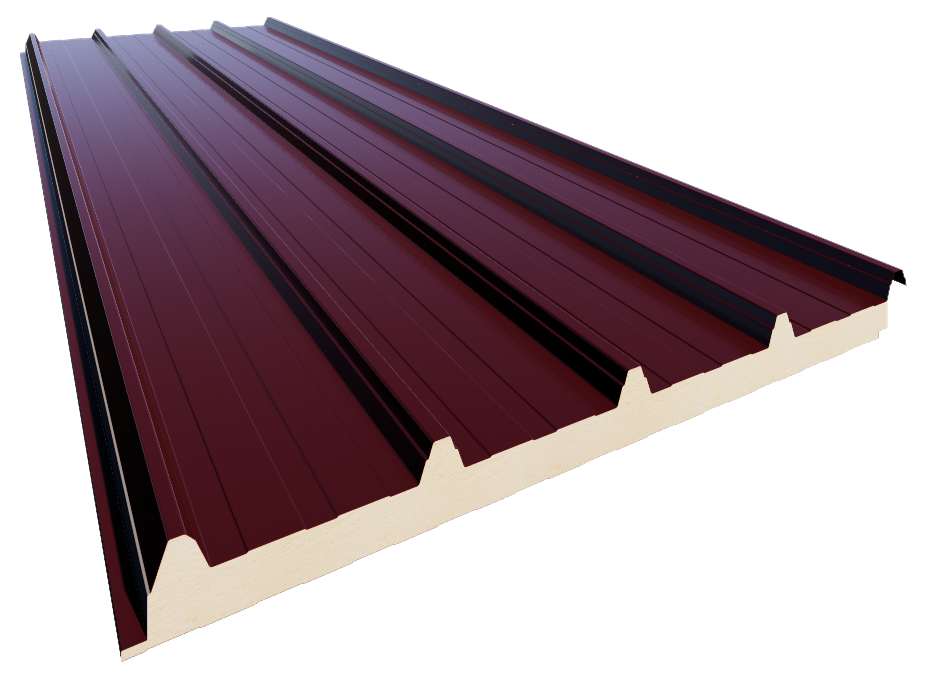

7002 Rojo Baztan

Panel-7002

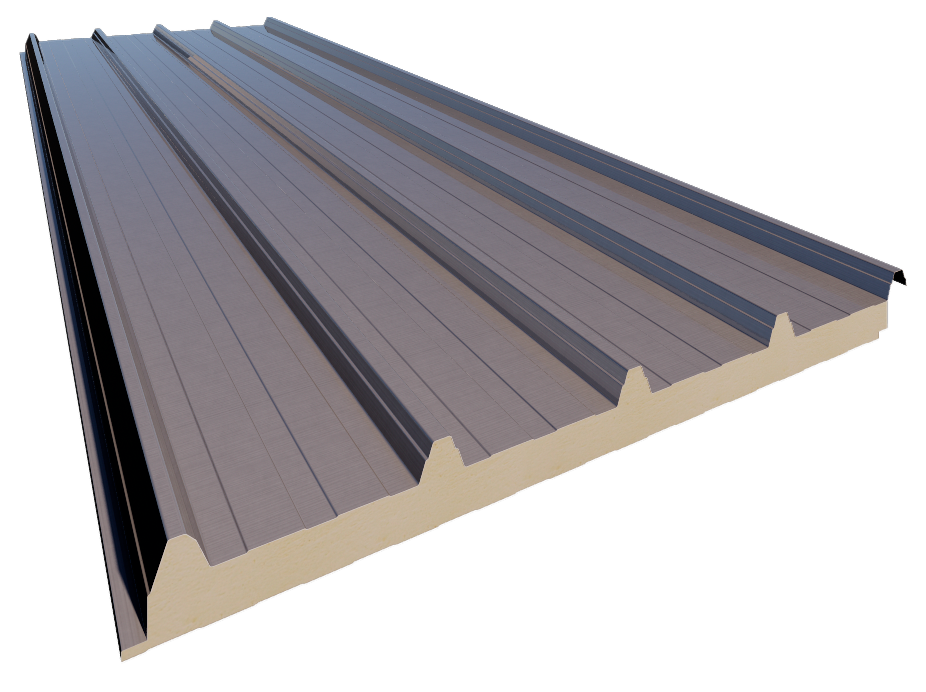

9007 Hiansa Metallic

Panel-9007

Technical documentation

Data sheet

Download

Panel Operations Guide

PANEL OPERATIONS GUIDE

Color Chart

COLOR CHART

BIM Objects

BIM Models

Assembly Guide for Roof Panel Easy Cub 5GR
