CUB 2GR Roof Panel
Roof Panel with Flashing
Panel designed for sloping roofs with a minimum incline of 7%. Its hidden bolt-on system (flashing) guarantees water tightness, while providing the system with a modern, functional appearance. Its profile combines perfectly with excellent mechanical properties with a minimum-ribbed finish.
Technical specifications
Exterior face
Pre-painted steel
Interior face
Pre-painted steel, centesimal aluminum, bituminous cardboard
Insulation
Polyurethane (PUR)
Polyisocyanurate (PIR)
Thicknesses (mm)
30/40/50/60/80/100/120 (1.18/1.57/1.97/2.36/3.15/3.94/4.72 in.)
Useful width
1,000 mm (39.37 in.)
Use
Sloping roof surfaces
Colors

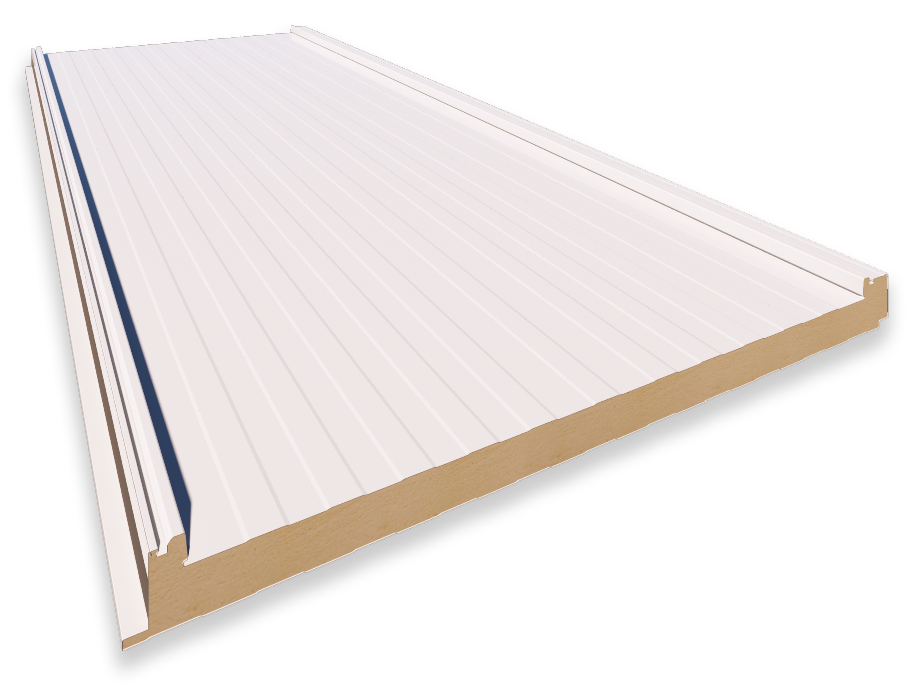

1000 Blanco Ostra*

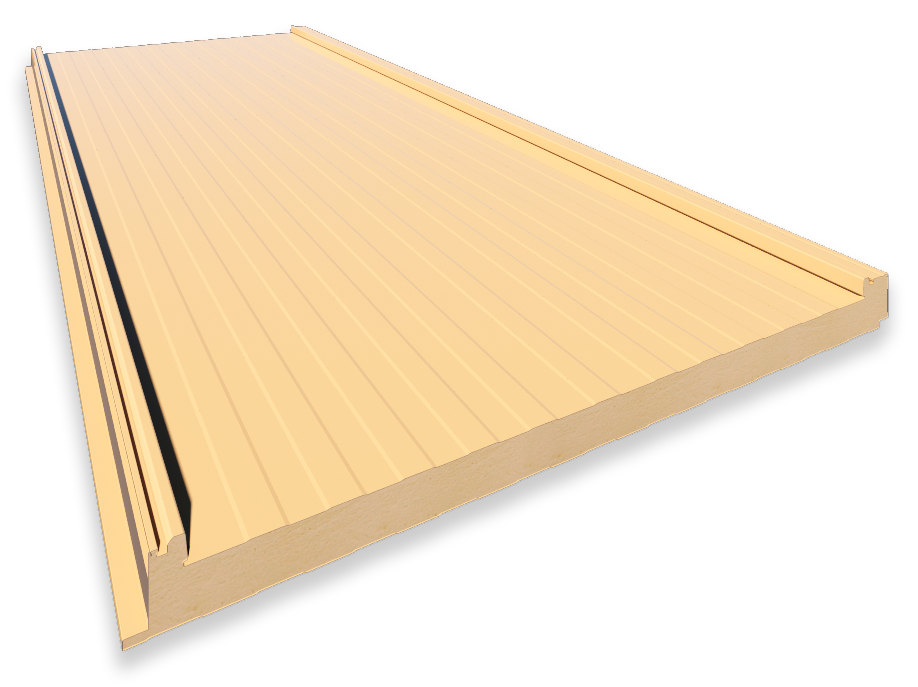

2000 Arena

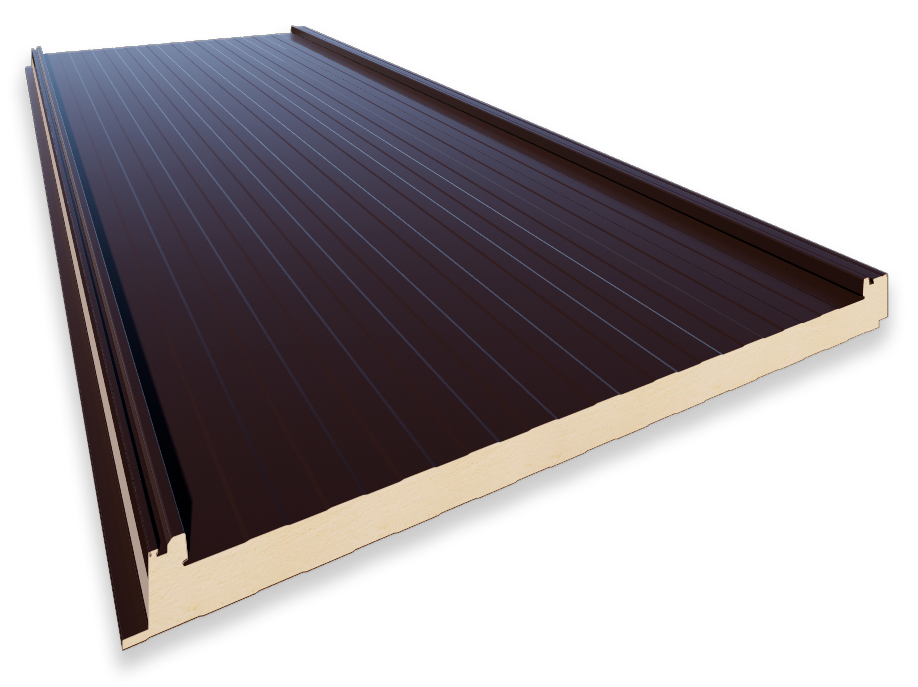

2005 Tabaco*

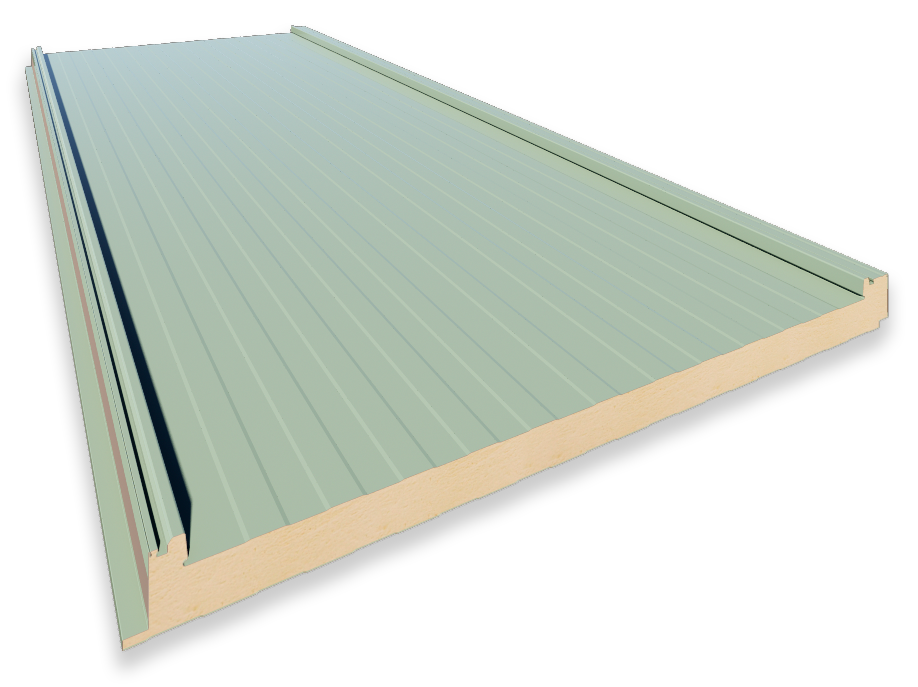

3001 Verde Claro*

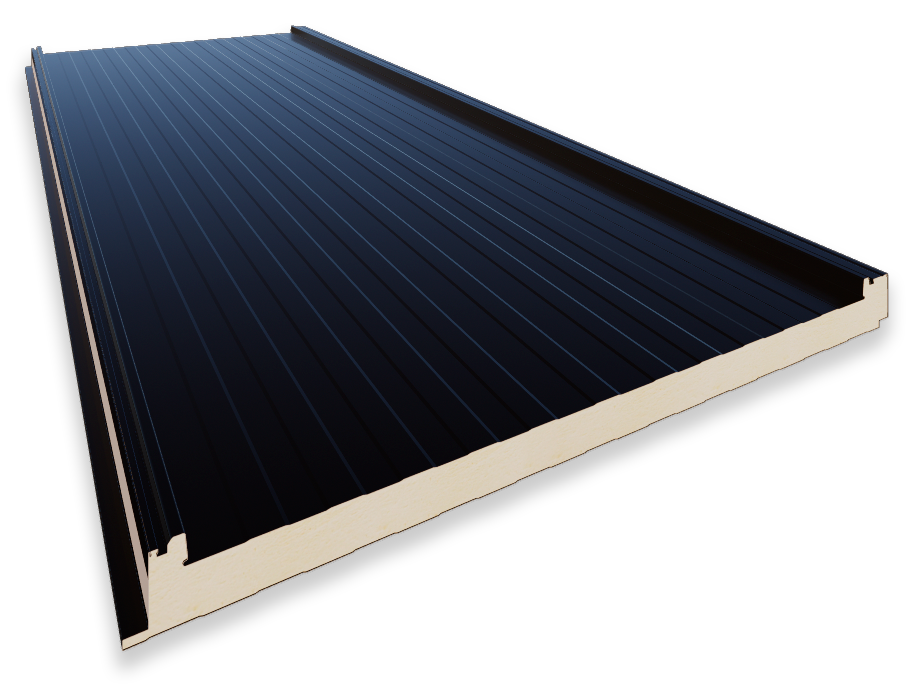

9005 Negro Intenso

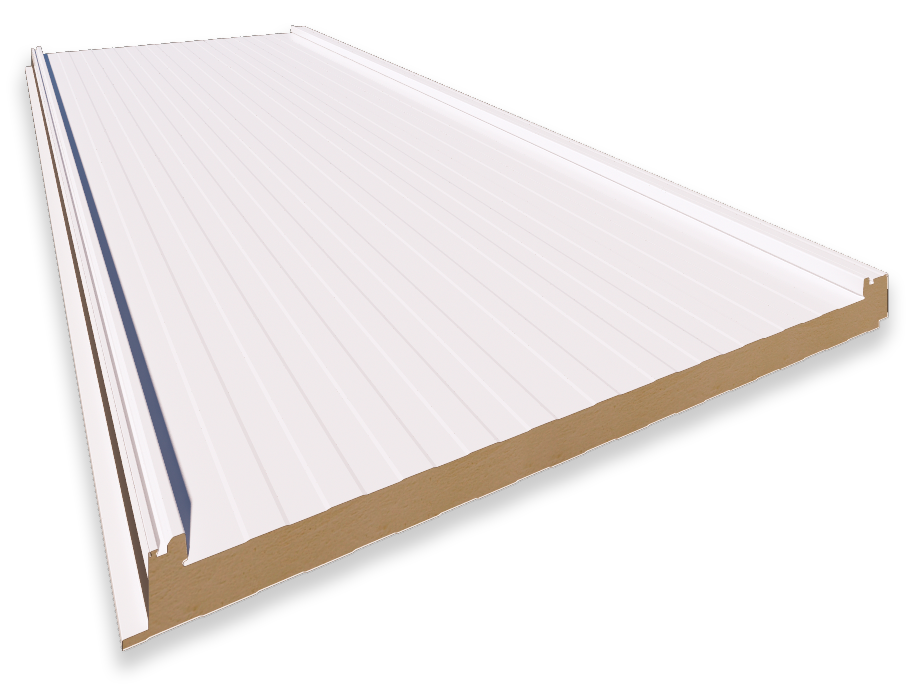

1006 Blanco Pirineo
2002 Crema Bidasoa

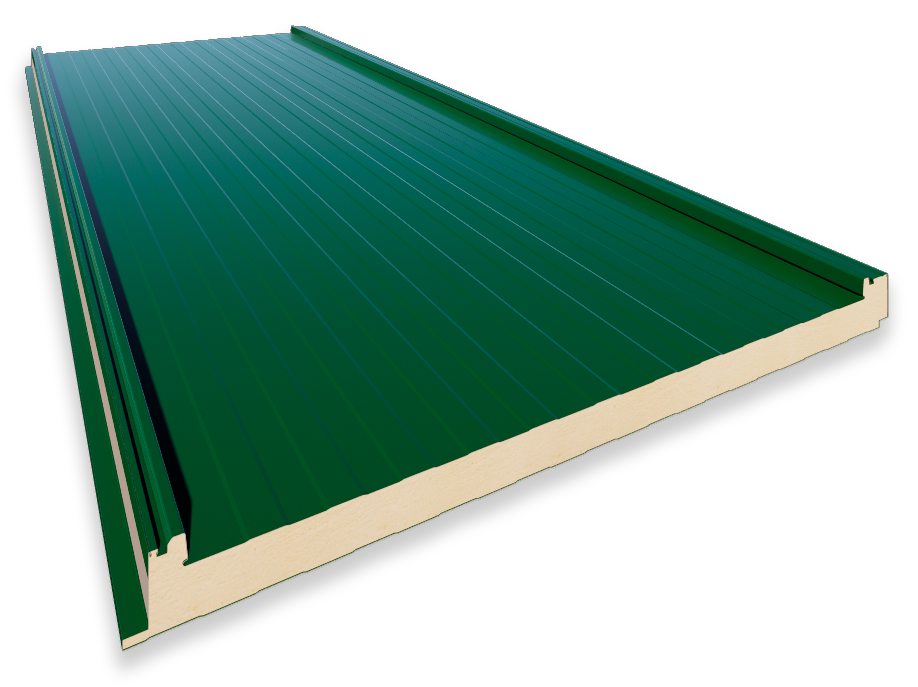

3000 Verde Navarro

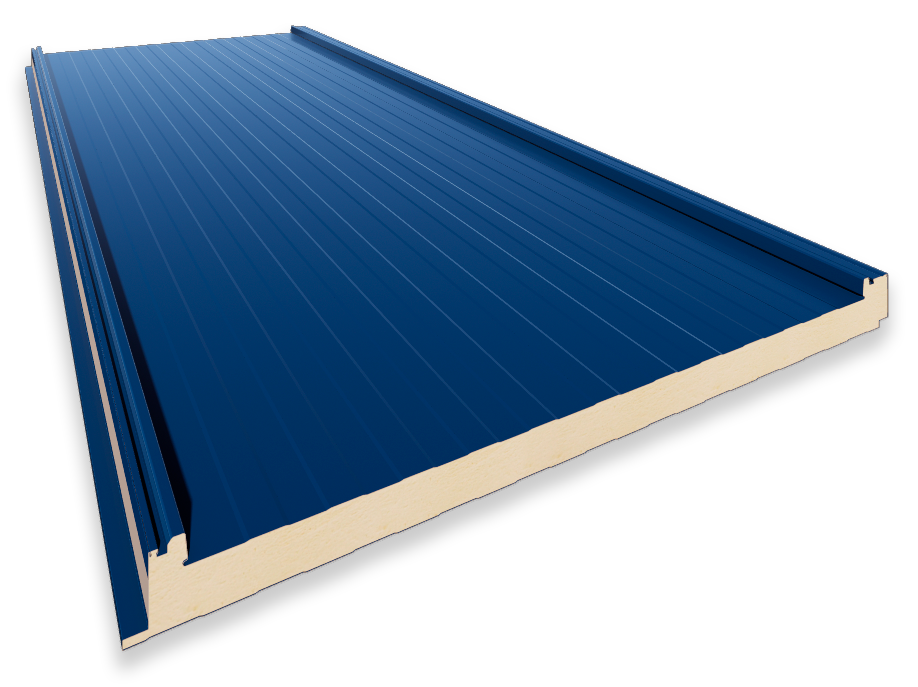

4000 Azul Lago

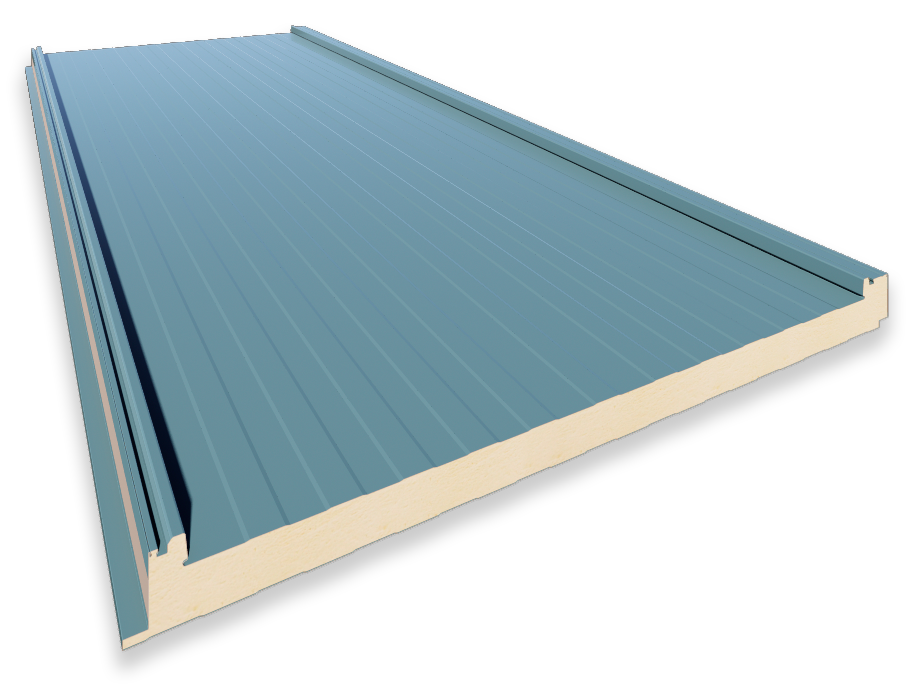

4001 Azul Cielo*

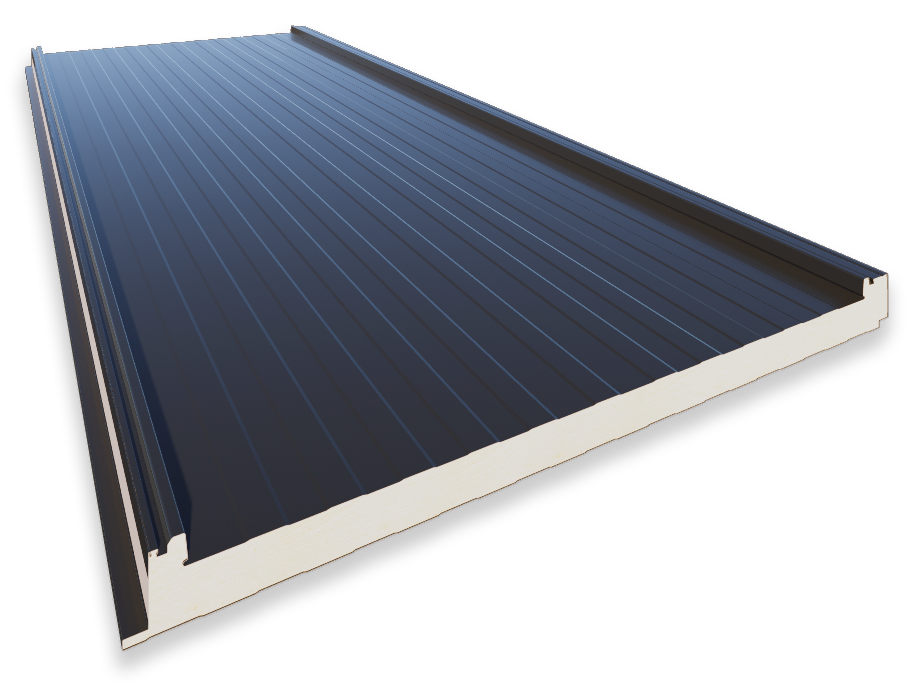

7022 Gris Pizarra

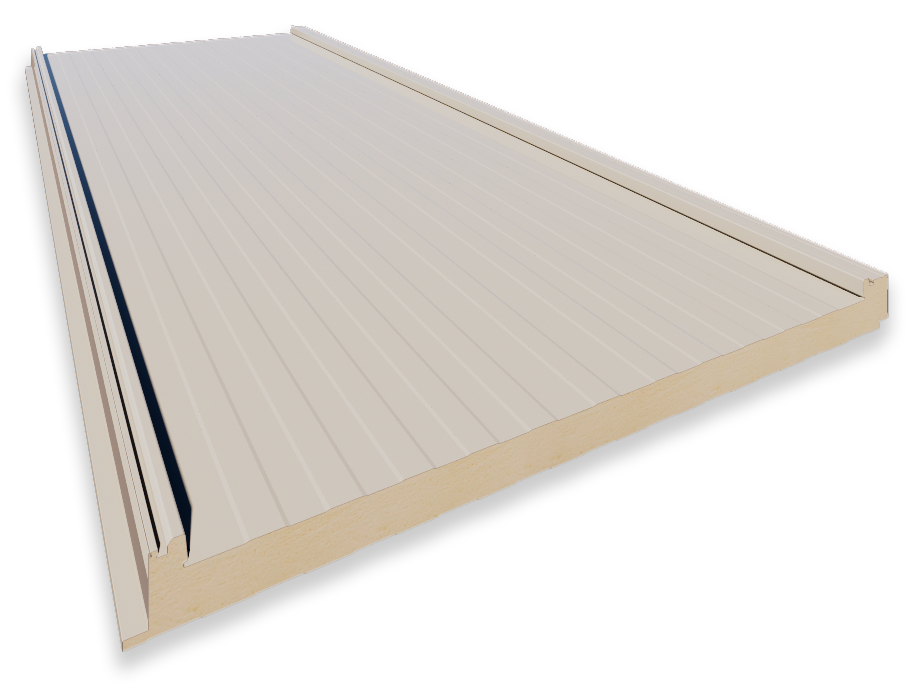

5001 Gris Perla

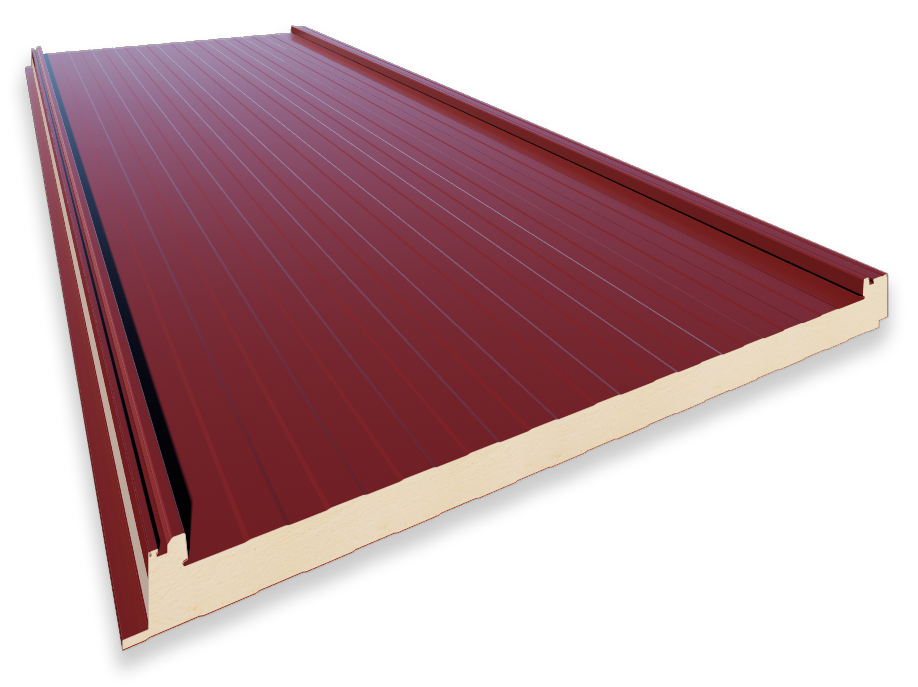

7001 Rojo teja
7004 Rojo Coral*
4002 Azul Marino*

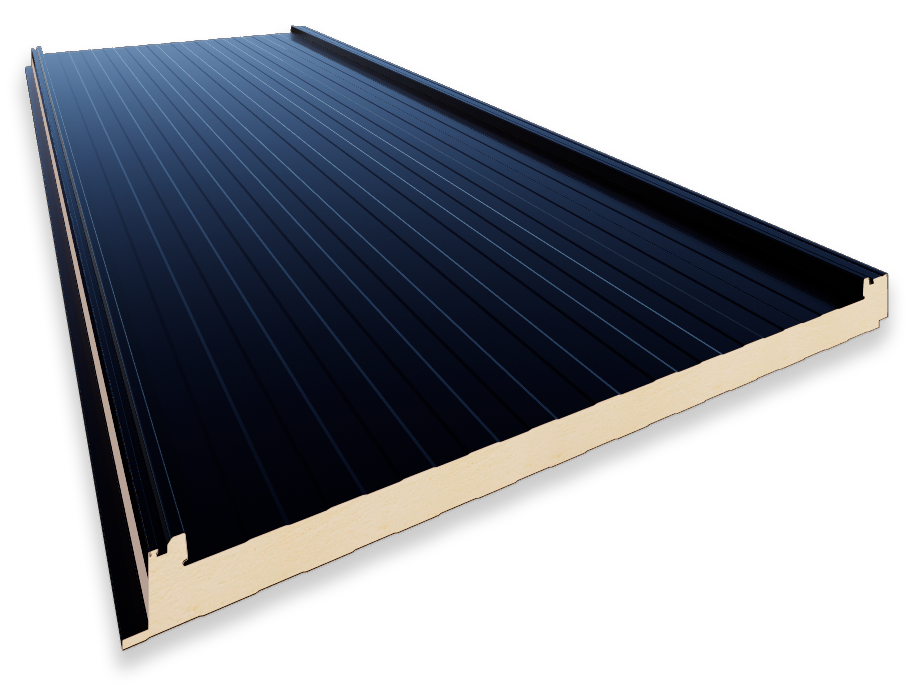

5008 Azul Ardoise*

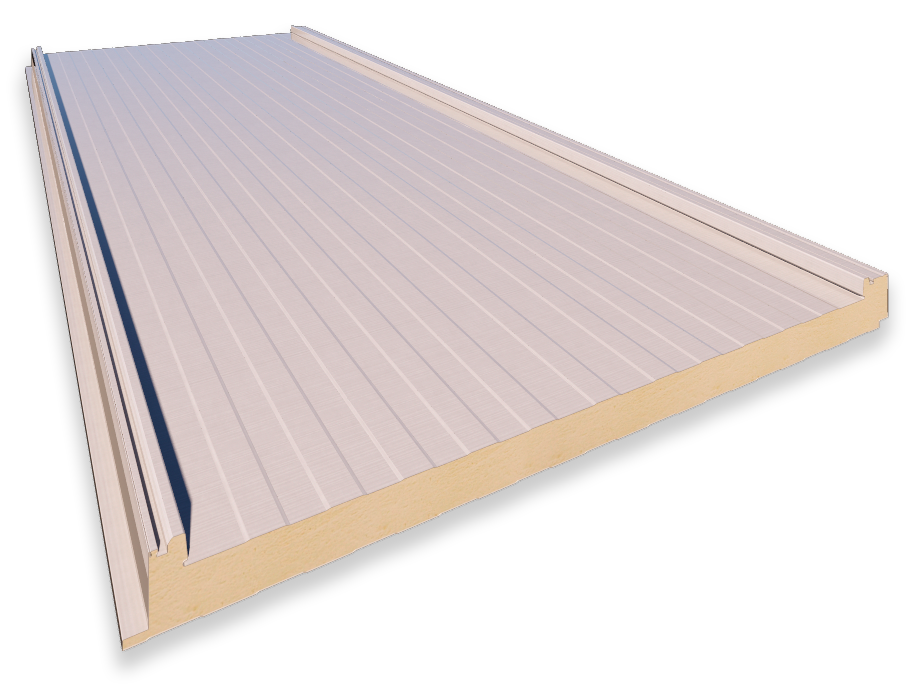

9006 Silver Metallic
7002 Rojo Baztan

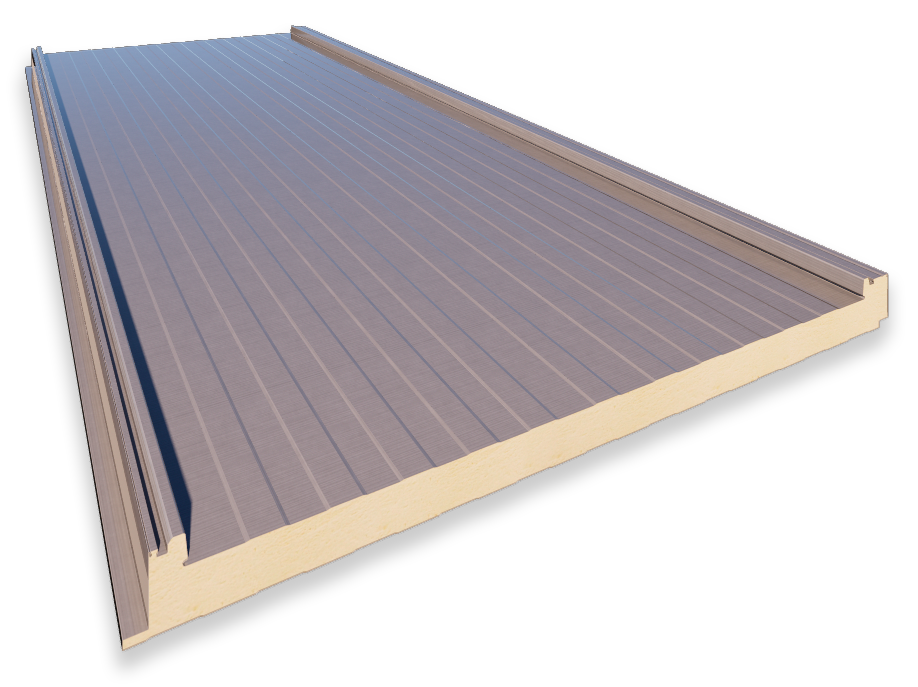

9007 Hiansa Metallic
Technical documentation
Data sheet
Panel Operations Guide
Color Chart
BIM Objects
Assembly Guide for Roof Panel 2GR
