MT-53 Mallorca Profiled Sheet
Architectural Façade
Hiansa’s profiled sheet Mallorca has a length of up to 6.00 m (19.67 ft) and can be manufactured in 3 useful widths: 804 mm (31.65 in.), 868 mm (34.17 in.) and 990 mm (38.98 in.). With a nerve height of 53 mm (2.09 in.) and its triangular shape, it offers an attractive light and shadow effect on the façade that will make the wall come to life as the amount of sunlight changes throughout the day.
Its design, with a discreet fit between each piece and with the fixing system seen on a substructure that is adjustable in depth, can be installed both vertically and horizontally, thus adapting to the most demanding conditions to create a wall with a high-quality finish.
Technical specifications
Finish
Pre-painted
Thicknesses (mm)
Up to 0.8 mm (0.03 in.)
Useful width
804/868/990 mm
(31.65/34.17/38.98 in.)
Use
Façades / False roof
Colors
1000 Blanco Ostra*

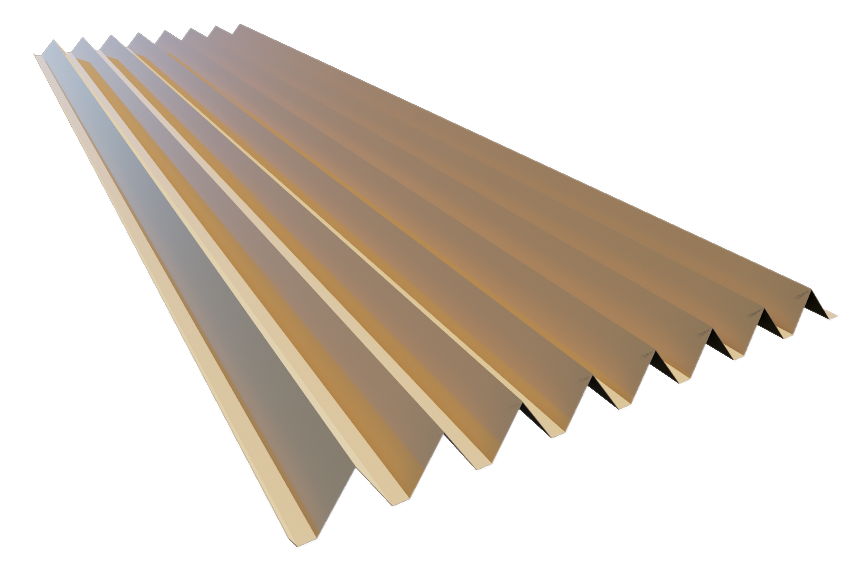

2000 Arena
2005 Tabaco*

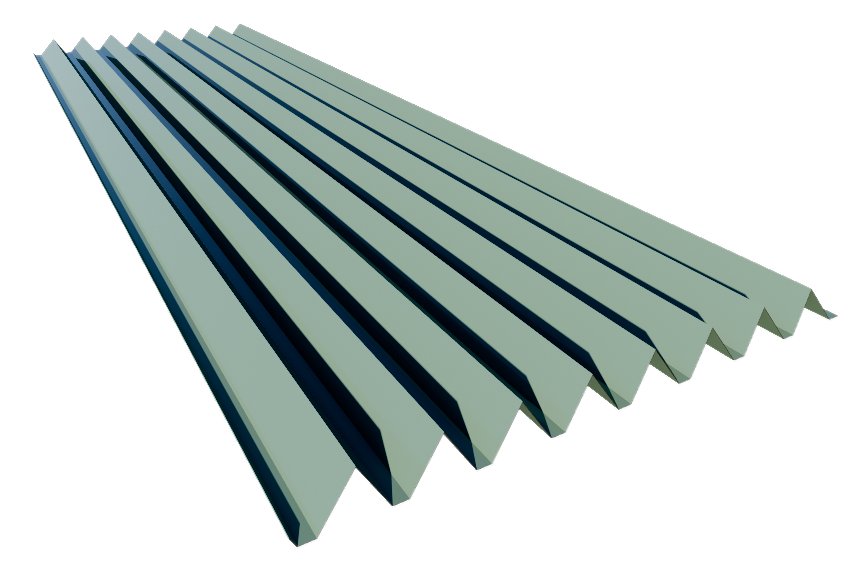

3001 Verde Claro*

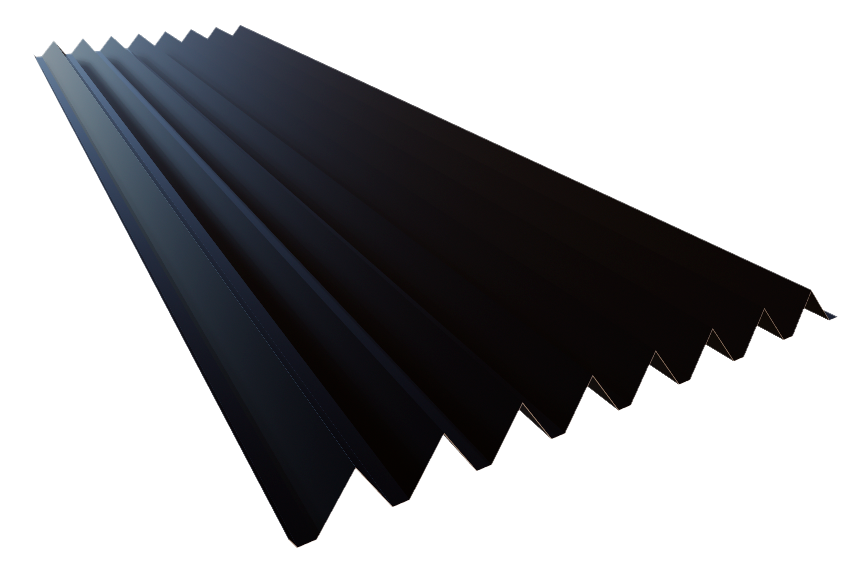

9005 Negro Intenso

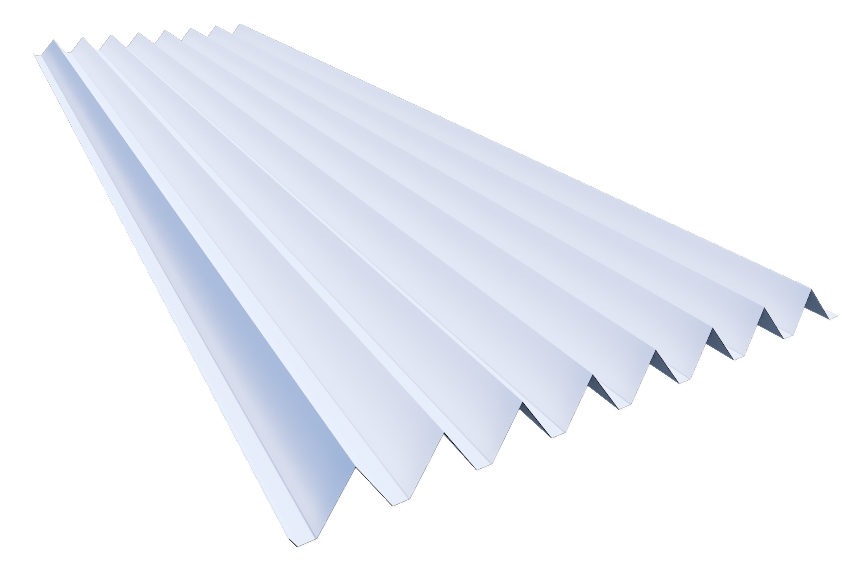

1006 Blanco Pirineo
2002 Crema Bidasoa

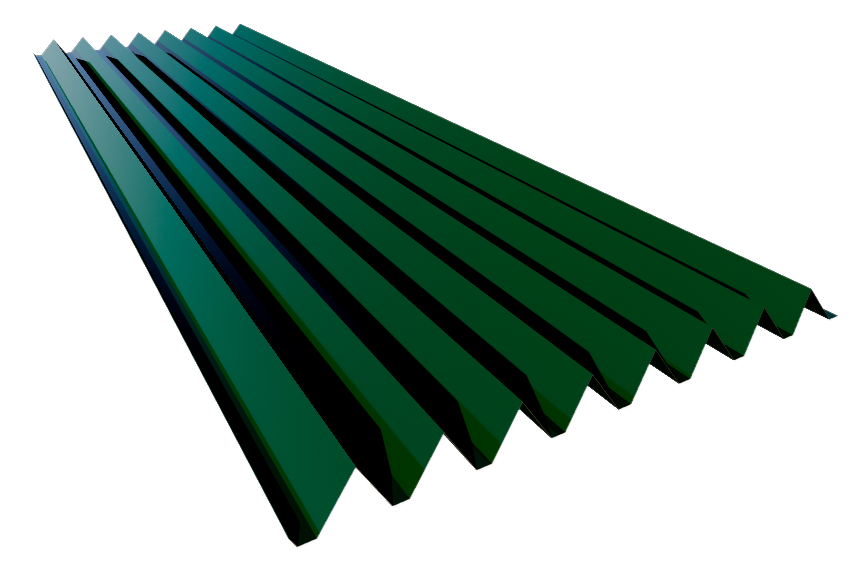

3000 Verde Navarro
4000 Azul Lago

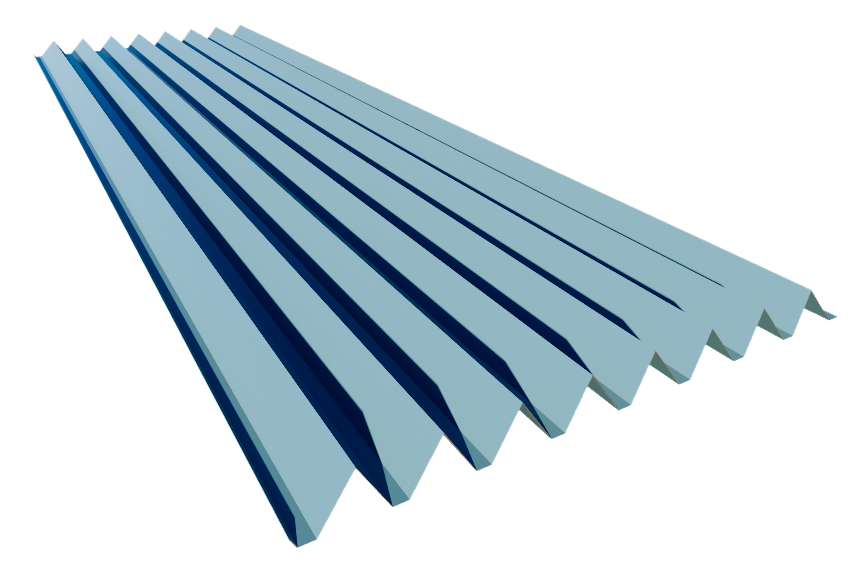

4001 Azul Cielo*

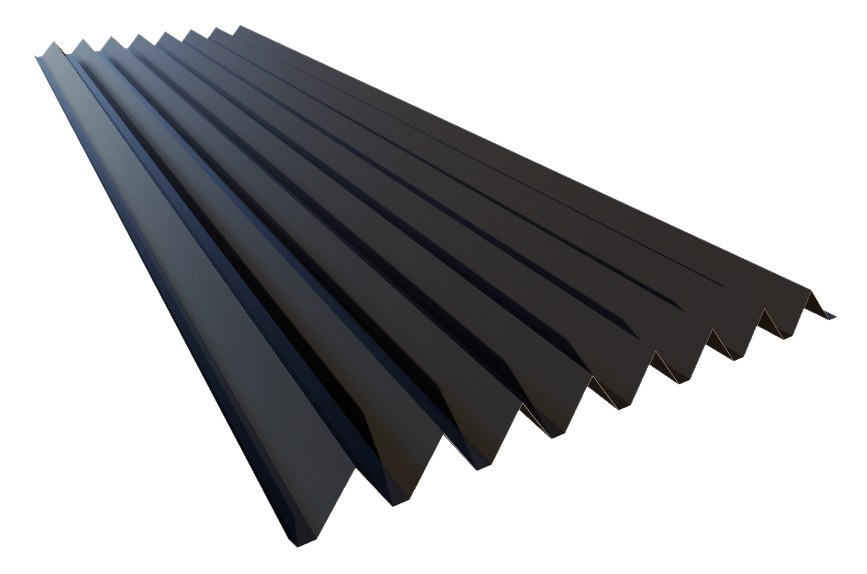

7022 Gris Pizarra
5001 Gris Perla
7001 Rojo teja
7004 Rojo Coral*

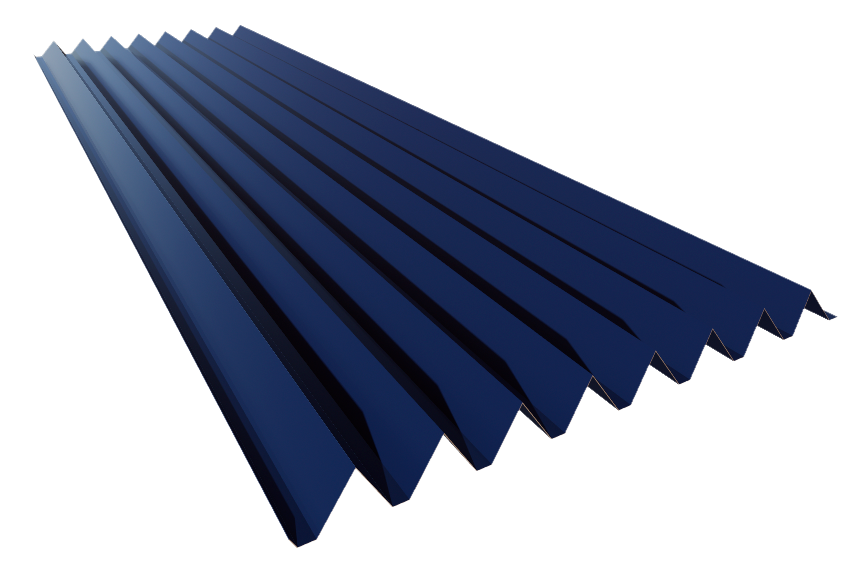

4002 Azul Marino*

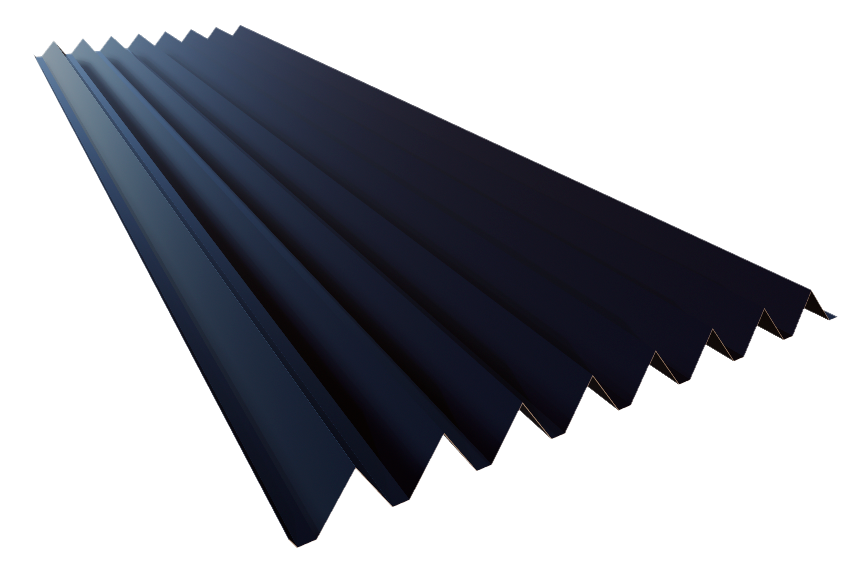

5008 Azul Ardoise*
9006 Silver Metallic

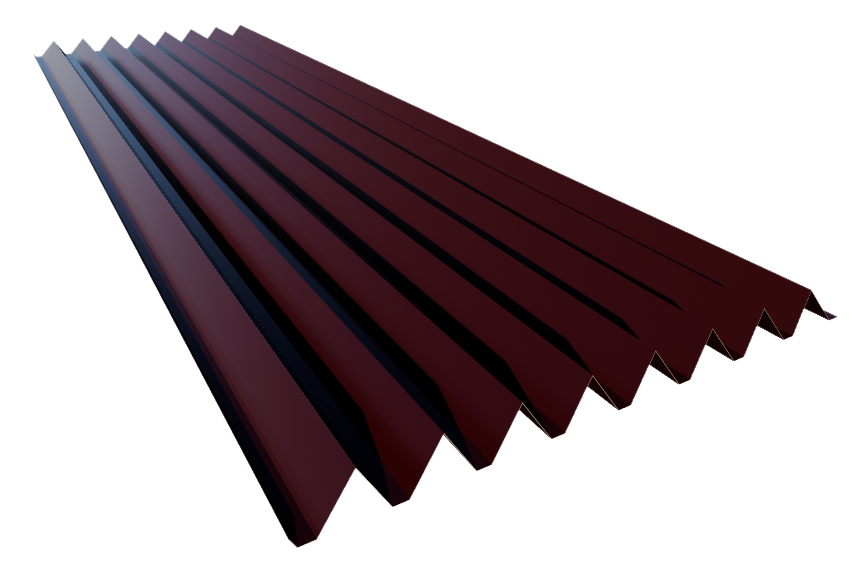

7002 Rojo Baztan

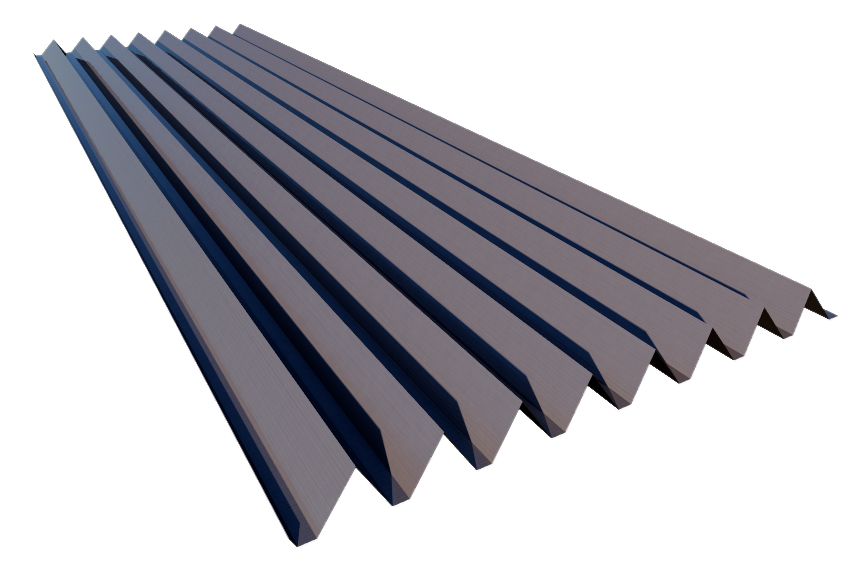

9007 Hiansa Metallic
