MT-35 Formentera Profiled Sheet

Architectural Façade

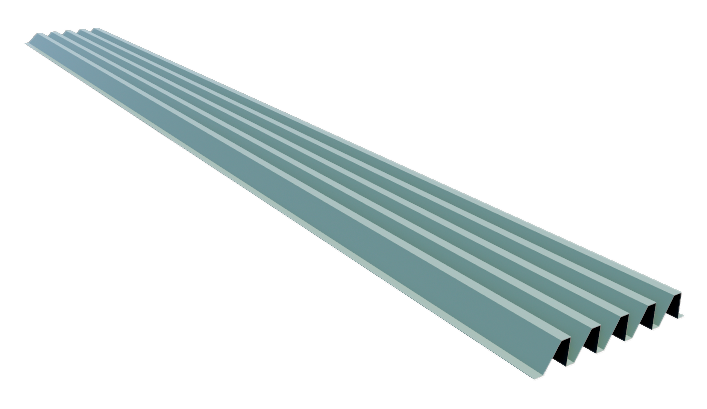

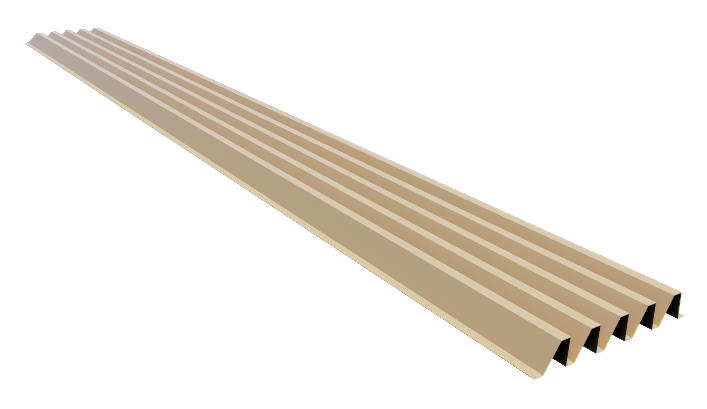

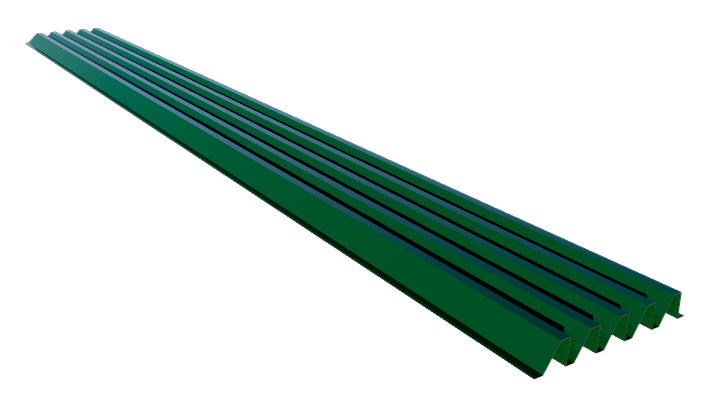

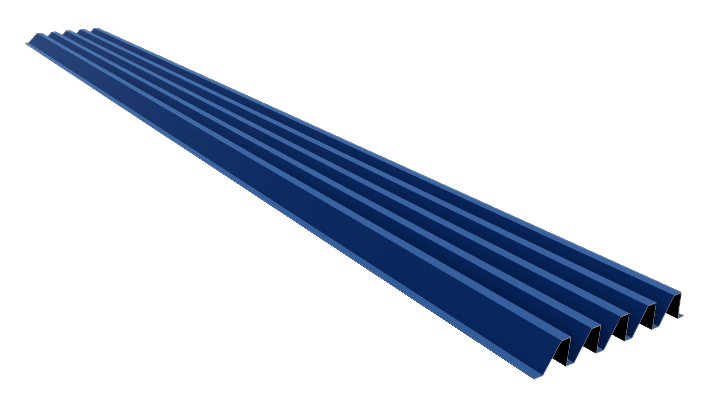

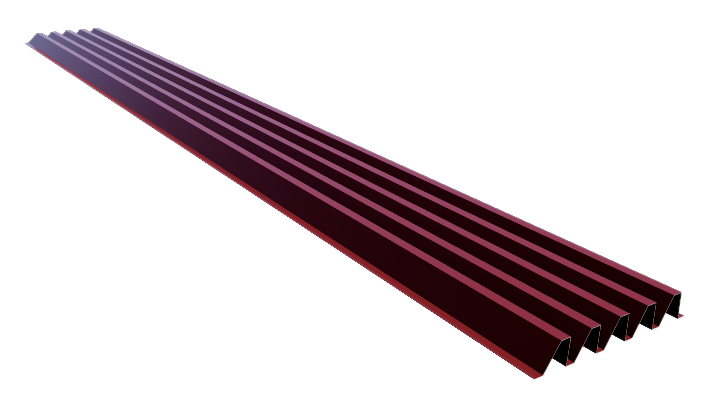

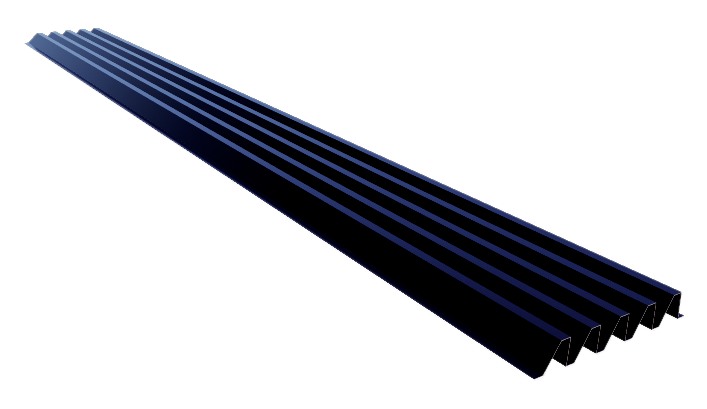

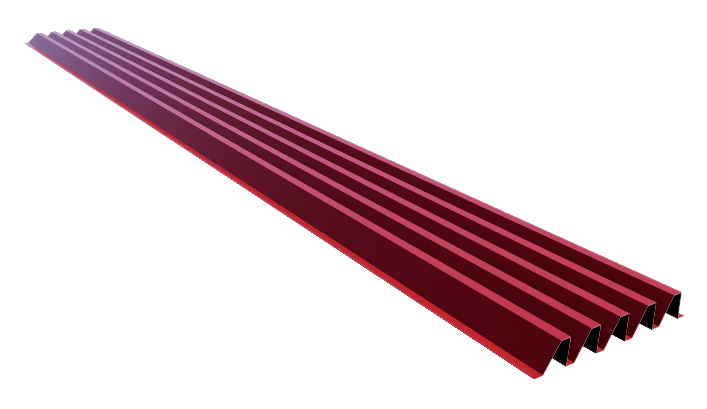

Hiansa’s profiled sheet Formentera has a length of up to 6.00 m (19.67 ft) and is manufactured in a useful width of 314 mm (12.36 in.). With a nerve height of 35 mm (1.38 in.) and its sloped trapezoidal shape, it offers an appearance similar to sea waves or conventional ventilation grates, but with continuous plate, which ensures its tightness, while maintaining a beautiful aesthetic.
Its design, with a discreet fit between each piece and with the fixing system seen on a substructure that is adjustable in depth, can be installed both vertically and horizontally, thus adapting to the most demanding conditions to create a wall with a high-quality finish.

Technical specifications



Thicknesses (mm)

Up to 0.8 mm (0.03 in.)

Useful width

314 mm (12.36 in.)


Façades / False roof

Technical documentation

Product Technical File

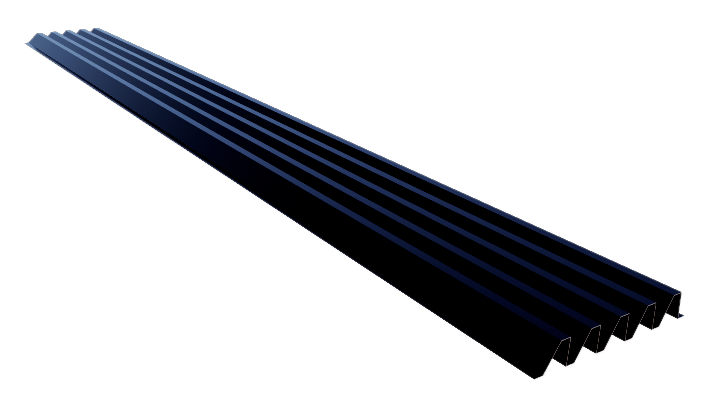

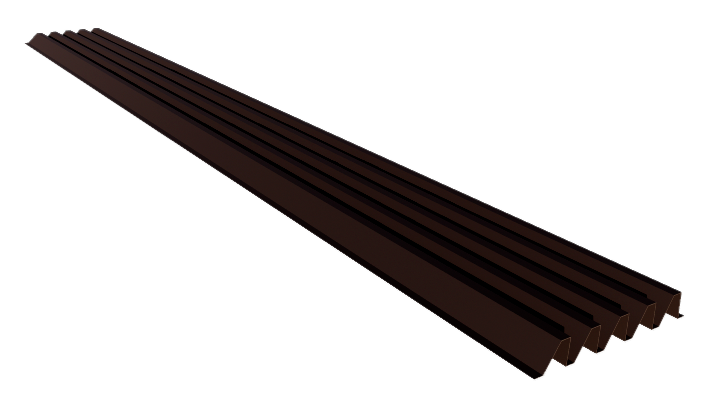

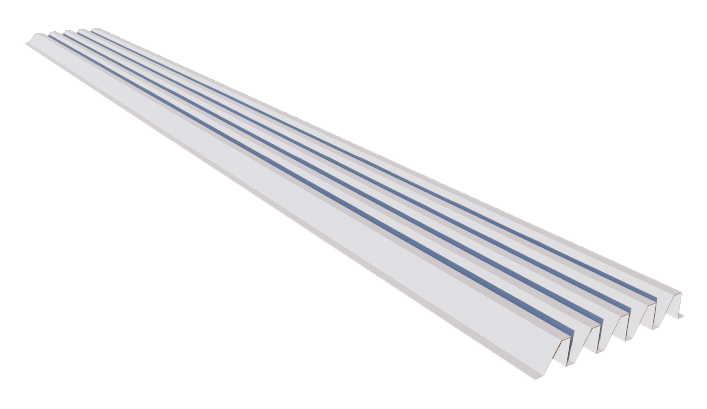

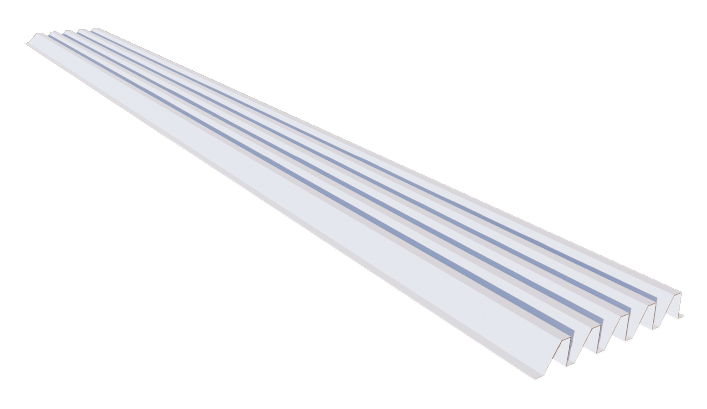

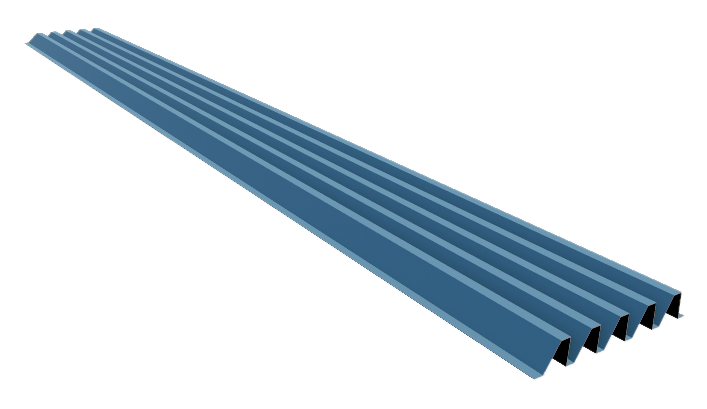

Color Chart


Objetos BIM

Biblioteca BIM
